Xenium Prime 5K (codeword)

This notebook demonstrates a spatial exon/junction variability workflow on Xenium Prime 5K data:

1. Load codeword-level SpatialData using splisosm.io.load_xenium_codeword.

2. Inspect binned tables and visualize codeword patterns.

3. Run FFT-accelerated spatial variability tests with SplisosmFFT.

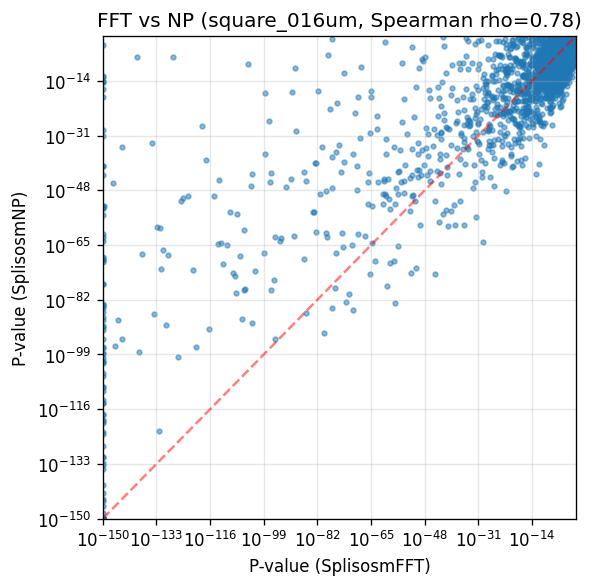

4. Compare SplisosmFFT and SplisosmNP on the same binning grid.

Estimated runtime: ~5 min (excluding SplisosmNP comparison).

Preliminary notes

For Xenium Prime 5K datasets, each gene is profiled by multiple codewords (i.e., exon/junction probe sets). To extract codeword-level counts, we utilize the load_xenium_codeword function from splisosm.io to read transcripts.zarr.zip directly. The function will aggregate transcript density into multi-resolution square-bin tables and produce a SpatialData object similar to that of the VisiumHD workflow.

Due to Xenium output data structure changes, if you encounter issues, please re-run the Xenium Ranger (>=v3.1.0) relabel pipeline. See 10x documentation for guidance.

Imports

from __future__ import annotations

from pathlib import Path
import warnings

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from scipy.stats import spearmanr

import spatialdata as sd
import spatialdata_plot  # Registers plotting accessors
from spatialdata import rasterize_bins

from splisosm import SplisosmFFT, SplisosmNP
from splisosm.utils import counts_to_ratios
from splisosm.io import load_xenium_codeword

/Users/jysumac/miniforge3/envs/splisosm_test/lib/python3.12/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

warnings.filterwarnings('ignore', category=FutureWarning)
plt.rcParams['figure.dpi'] = 120
plt.rcParams['figure.figsize'] = (6, 4)

Configure paths and core parameters

# Required: Xenium Ranger output directory (either the `outs` dir itself or its parent)
# xenium_prime_outs = Path('/path/to/xenium_prime_5k/outs')
xenium_prime_outs = Path('/Users/jysumac/Projects/SPLISOSM_paper/data/xenium_5k_mouse_brain/codeword-relabel/outs')

# Optional cache path
sdata_zarr = xenium_prime_outs / 'sdata_codeword.filtered.zarr'

# Resolutions (um) to materialize
spatial_resolutions = [8.0, 16.0]

# Primary analysis table / bins
test_table = 'square_016um'
test_bins_element = 'square_016um_bins'

# Feature grouping and filters
group_iso_by = 'gene_symbol'
gene_name_col = 'gene_symbol'
min_counts = 10
min_bin_pct = 0.0

# Xenium transcript filter
quality_threshold = 20.0

Load codeword-level SpatialData

We use a Xenium Prime 5K mouse brain fresh frozen dataset from 10x Genomics (5K Mouse Pan Tissue and Pathways Panel). Here we use the load_xenium_codeword function to build a SpatialData object where per-codeword density is computed at multi-resolution. The function wraps spatialdata-io.xenium.

%%time
if sdata_zarr.exists():
    print('Loading cached SpatialData...')
    sdata = sd.read_zarr(sdata_zarr)
else:
    print('Building Xenium codeword SpatialData from transcript chunks...')
    sdata = load_xenium_codeword(
        path=xenium_prime_outs,
        spatial_resolutions=spatial_resolutions,
        quality_threshold=quality_threshold,
        n_jobs=-1,
        chunk_batch_size=64,
        counts_layer_name='counts',
        build_cell_codeword_table=True,
        create_square_shapes=True,
        show_progress=True,
    )
    # Optional: cache for faster reruns
    # sdata.write(sdata_zarr)

sdata

Building Xenium codeword SpatialData from transcript chunks...

/Users/jysumac/miniforge3/envs/splisosm_test/lib/python3.12/functools.py:912: ImplicitModificationWarning: Transforming to str index.

WARNING  The `feature_key` column feature_name is categorical with unknown categories. Please ensure the categories
         are known before calling `PointsModel.parse()` to avoid significant performance implications due to the
         need for dask to compute the categories. If you did not use PointsModel.parse() explicitly in your code
         (e.g. this message is coming from a reader in `spatialdata_io`), please report this finding.

CPU times: user 3min 16s, sys: 57.1 s, total: 4min 13s
Wall time: 2min 13s

SpatialData object
├── Images
│     └── 'morphology_focus': DataTree[cyx] (4, 23912, 34154), (4, 11956, 17077), (4, 5978, 8538), (4, 2989, 4269), (4, 1494, 2134)
├── Labels
│     ├── 'cell_labels': DataTree[yx] (23912, 34154), (11956, 17077), (5978, 8538), (2989, 4269), (1494, 2134)
│     └── 'nucleus_labels': DataTree[yx] (23912, 34154), (11956, 17077), (5978, 8538), (2989, 4269), (1494, 2134)
├── Points
│     └── 'transcripts': DataFrame with shape: (<Delayed>, 13) (3D points)
├── Shapes
│     ├── 'cell_boundaries': GeoDataFrame shape: (63173, 1) (2D shapes)
│     ├── 'nucleus_boundaries': GeoDataFrame shape: (63036, 1) (2D shapes)
│     ├── 'square_008um_bins': GeoDataFrame shape: (576580, 1) (2D shapes)
│     └── 'square_016um_bins': GeoDataFrame shape: (144372, 1) (2D shapes)
└── Tables
      ├── 'square_008um': AnnData (576580, 11163)
      ├── 'square_016um': AnnData (144372, 11163)
      ├── 'table': AnnData (63173, 5006)
      └── 'table_codeword': AnnData (63173, 11163)
with coordinate systems:
    ▸ 'global', with elements:
        morphology_focus (Images), cell_labels (Labels), nucleus_labels (Labels), transcripts (Points), cell_boundaries (Shapes), nucleus_boundaries (Shapes), square_008um_bins (Shapes), square_016um_bins (Shapes)

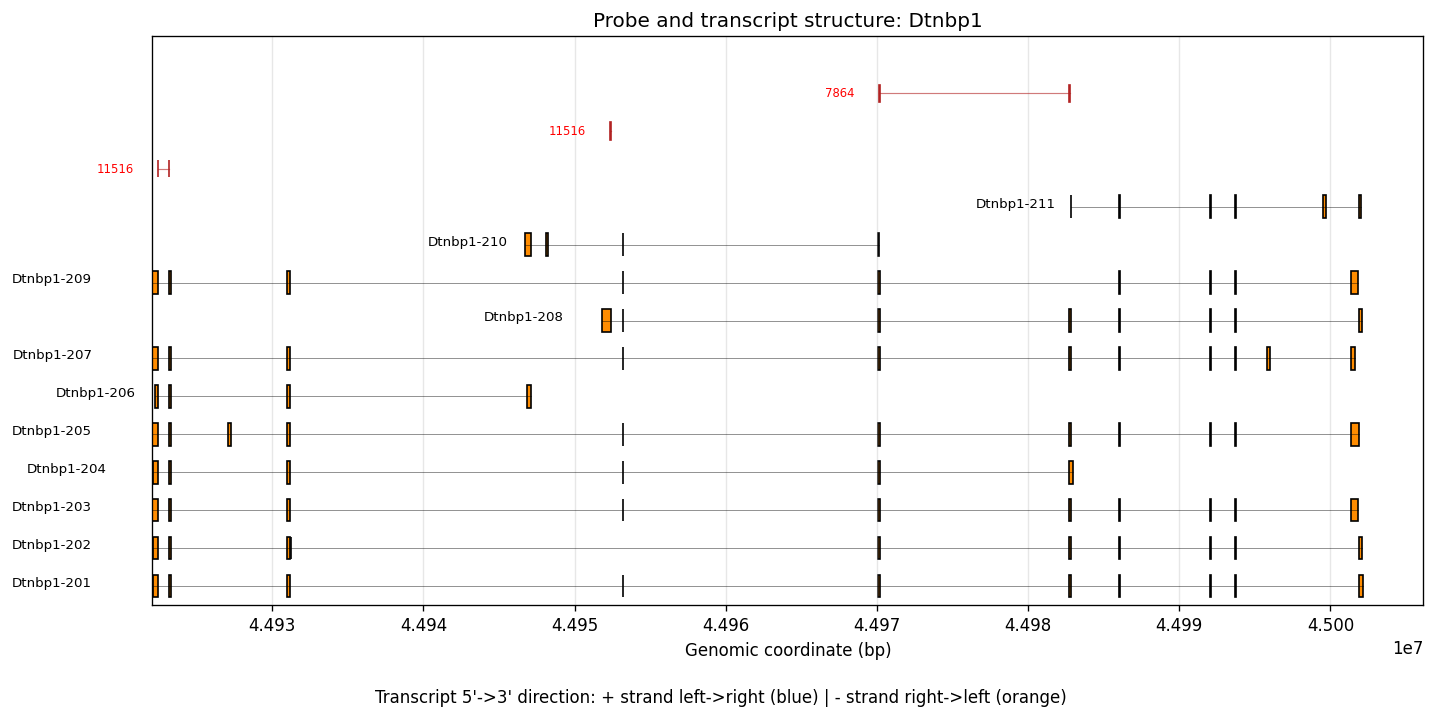

In Xenium Prime 5K datasets, each codeword corresponds to a specific probe set for a gene. Here, we will focus on the codeword-level counts tables:

• sdata.tables['table_codeword'] contains cell-by-codeword counts aggregated to segmented cells.

• sdata.tables['table_codeword_square_xxxum'] contains bin-by-codeword counts aggregated at various resolutions.

def summarize_table(adata):
    X = adata.layers['counts'] if 'counts' in adata.layers else adata.X
    if hasattr(X, 'nnz'):
        nnz = int(X.nnz)
        total = int(X.shape[0] * X.shape[1])
        density = nnz / total if total else np.nan
    else:
        arr = np.asarray(X)
        nnz = int(np.count_nonzero(arr))
        total = int(arr.size)
        density = nnz / total if total else np.nan
    return {
        'n_features': int(adata.n_vars),
        'n_bins': int(adata.n_obs),
        'count_mtx_density': density,
    }

rows = []
for key in sorted(sdata.tables.keys()):
    rows.append({'table': key, **summarize_table(sdata.tables[key])})

table_summary = pd.DataFrame(rows).sort_values('table')
table_summary

	table	n_features	n_bins	count_mtx_density
0	square_008um	11163	576580	0.018701
1	square_016um	11163	144372	0.058018
2	table	5006	63173	0.139117
3	table_codeword	11163	63173	0.077513

Note that only data with regular spacing (e.g., square_016um) are suitable for FFT-based spatial variability analysis. For illustration purposes, we will run analysis on the square_016um table and use the shape square_016um_bins (i.e., spatial grid with 16x16um bins) for rasterization.

print('Tables:', sorted(sdata.tables.keys()))
print('Shapes:', sorted(getattr(sdata, 'shapes', {}).keys()))
print('Images:', sorted(getattr(sdata, 'images', {}).keys()))

if test_table not in sdata.tables:
    raise ValueError(f'{test_table} is not available. Choose from: {sorted(sdata.tables.keys())}')
if test_bins_element not in sdata.shapes:
    raise ValueError(f'{test_bins_element} is not available. Choose from: {sorted(sdata.shapes.keys())}')

adata_test = sdata.tables[test_table]
if group_iso_by not in adata_test.var.columns:
    raise ValueError(f'{group_iso_by} not found in {test_table}.var columns')

print(f'Using table={test_table}, bins={test_bins_element}')
print(f'Grouping column={group_iso_by}, display names={gene_name_col}')

Tables: ['square_008um', 'square_016um', 'table', 'table_codeword']
Shapes: ['cell_boundaries', 'nucleus_boundaries', 'square_008um_bins', 'square_016um_bins']
Images: ['morphology_focus']
Using table=square_016um, bins=square_016um_bins
Grouping column=gene_symbol, display names=gene_symbol

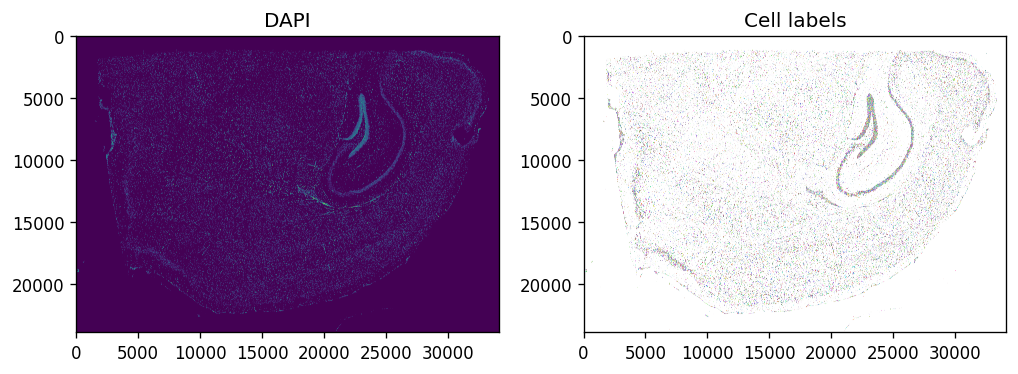

Optional morphology and segmentation preview

%%time
axes = plt.subplots(1, 2, figsize=(10, 5))[1].flatten()
sdata.pl.render_images(f"morphology_focus", channel='DAPI').pl.show(
    coordinate_systems=f"global",
    ax=axes[0], title="DAPI", colorbar=False
)
sdata.pl.render_labels(f"cell_labels").pl.show(
    coordinate_systems=f"global",
    ax=axes[1], title="Cell labels"
)

INFO     Rasterizing image for faster rendering.

/Users/jysumac/miniforge3/envs/splisosm_test/lib/python3.12/site-packages/pims/tiff_stack.py:131: UserWarning: <tifffile.TiffPage 0 @16> reading array from closed file

INFO     Rasterizing image for faster rendering.
CPU times: user 4min 45s, sys: 23.2 s, total: 5min 8s
Wall time: 1min 4s

Rasterize bins and visualize one codeword

%%time
# rasterize_bins() expects a CSC matrix for best compatibility
adata_plot = sdata.tables[test_table]
adata_plot.X = adata_plot.layers['counts']
if hasattr(adata_plot.X, 'tocsc') and getattr(adata_plot.X, 'format', None) != 'csc':
    adata_plot.X = adata_plot.X.tocsc()

raster_key = f'rasterized_{test_table}'
sdata[raster_key] = rasterize_bins(
    sdata,
    bins=test_bins_element,
    table_name=test_table,
    col_key='array_col',
    row_key='array_row',
)
print('Created:', raster_key)

Created: rasterized_square_016um
CPU times: user 1.22 s, sys: 416 ms, total: 1.63 s
Wall time: 2.91 s

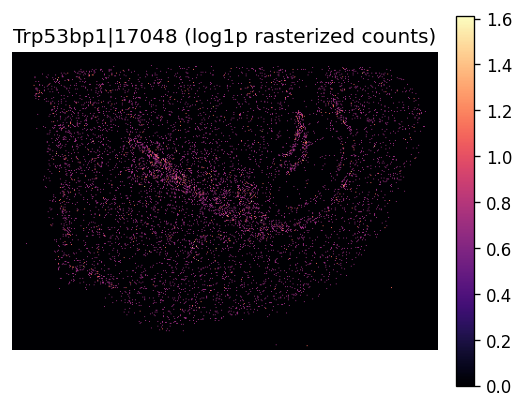

%%time
feature_name = 'Trp53bp1|17048' # Trp53bp1
img = np.asarray(sdata[f'rasterized_{test_table}'].sel(c=feature_name).values).squeeze()

fig, ax = plt.subplots(figsize=(5, 4))
im = ax.imshow(np.log1p(img), cmap='magma')
ax.set_title(f'{feature_name} (log1p rasterized counts)')
ax.axis('off')
fig.colorbar(im, ax=ax, fraction=0.046, pad=0.04)
plt.show()

CPU times: user 59.1 ms, sys: 11.9 ms, total: 70.9 ms
Wall time: 80.4 ms

Spatial variability testing with SplisosmFFT

model = SplisosmFFT(neighbor_degree=1, rho=0.99)
model.setup_data(
    sdata=sdata,
    bins=test_bins_element,
    table_name=test_table,
    col_key='array_col',
    row_key='array_row',
    layer='counts',
    group_iso_by=group_iso_by,
    gene_names=gene_name_col,
    min_counts=min_counts,
    min_bin_pct=min_bin_pct,
)
print(model)

=== FFT SPLISOSM model for spatial isoform testings
- Number of genes: 4972
- Number of observed spots: 144372
- Number of raster cells: 144372
- Average number of isoforms per gene: 2.091713596138375
=== Test results
- Spatial variability test: NA
- Differential usage test: NA

Before running the test, we can again check gene-level summaries to confirm that Xenium Prime 5K data contains multiple codewords per gene.

%%time
gene_meta = model.extract_feature_summary(level='gene')
gene_meta.sort_values('perplexity', ascending=False).head(5)

Genes: 100%|██████████| 4972/4972 [00:11<00:00, 433.17it/s]

CPU times: user 10.3 s, sys: 1.59 s, total: 11.9 s
Wall time: 12 s

	n_isos	perplexity	pct_bin_on	count_avg	count_std
gene
Gnao1	4	3.979105	0.616671	4.027173	5.066839
Apob	4	3.952770	0.001385	0.002016	0.141543
Gja1	4	3.929913	0.375149	1.565989	3.772387
Acox1	4	3.921495	0.459334	1.000139	1.440174
Ghr	4	3.909349	0.041268	0.045805	0.233034

%%time
model.test_spatial_variability(
    method='hsic-ir',
    ratio_transformation='none',
    n_jobs=-1,
    print_progress=True,
)
sv_res_fft = model.get_formatted_test_results('sv').sort_values('pvalue_adj')

SV (hsic-ir): 100%|██████████| 4972/4972 [01:10<00:00, 70.61it/s]

CPU times: user 2min 40s, sys: 33.9 s, total: 3min 14s
Wall time: 1min 10s

sig_001 = int((sv_res_fft['pvalue_adj'] < 0.01).sum())
print(
    'Spatially variable genes (FDR < 0.01): '
    f'{sig_001} out of {sv_res_fft.shape[0]} total genes'
)
sv_res_fft.head(5)

Spatially variable genes (FDR < 0.01): 2144 out of 4972 total genes

	gene	statistic	pvalue	pvalue_adj
2061	Zfp281	1.777472e-06	0.0	0.0
2310	Ddit3	1.621363e-06	0.0	0.0
3851	Ttll6	2.199914e-08	0.0	0.0
138	Grpel1	5.033253e-07	0.0	0.0
4577	Ifit3	4.637240e-07	0.0	0.0

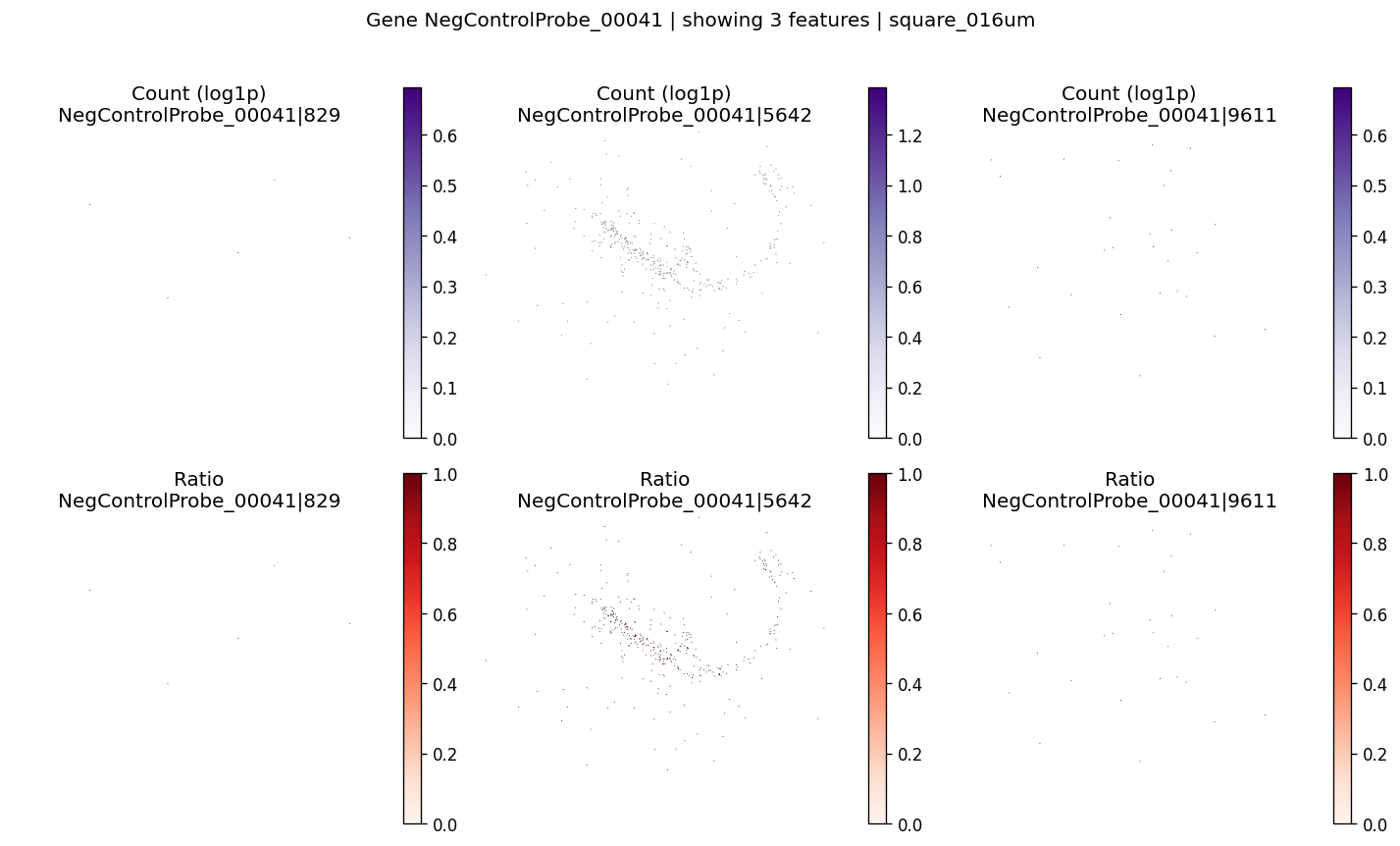

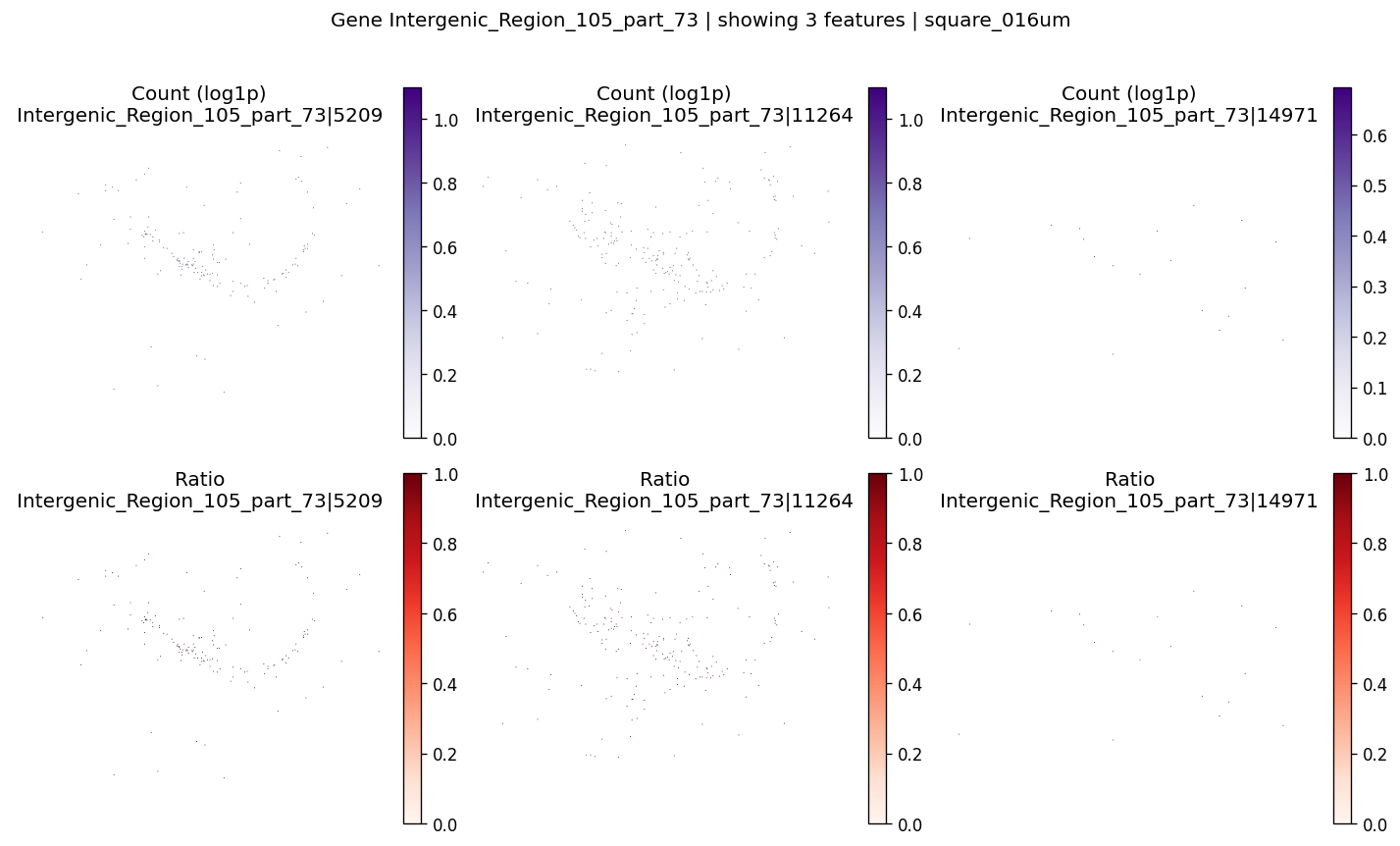

We can use negative control probes to estimate false positive rates due to technical noise (e.g., probe malfunction or non-specific hybridization).

ctrl_genes = (
    sv_res_fft['gene'].str.startswith('NegControlProbe') |
    sv_res_fft['gene'].str.startswith('Intergenic')
)
sig_001_ctrl = int((sv_res_fft.loc[ctrl_genes, 'pvalue_adj'] < 0.01).sum())
print(
    'Spatially variable negative control genes (FDR < 0.01): '
    f'{sig_001_ctrl} out of {sv_res_fft.loc[ctrl_genes].shape[0]} total control genes'
)
sv_res_fft.loc[ctrl_genes].sort_values('pvalue_adj').head(5)

Spatially variable negative control genes (FDR < 0.01): 8 out of 57 total control genes

	gene	statistic	pvalue	pvalue_adj
2475	Intergenic_Region_105_part_73	2.199321e-08	8.115485e-17	5.942591e-16
463	NegControlProbe_00041	5.502025e-09	1.810361e-07	7.667050e-07
731	NegControlProbe_00003	5.328555e-09	3.139711e-07	1.294415e-06
1042	Intergenic_Region_10757_part_30	8.702548e-09	9.215231e-05	2.883457e-04
1105	NegControlProbe_00014	1.269646e-08	2.698407e-04	7.892047e-04

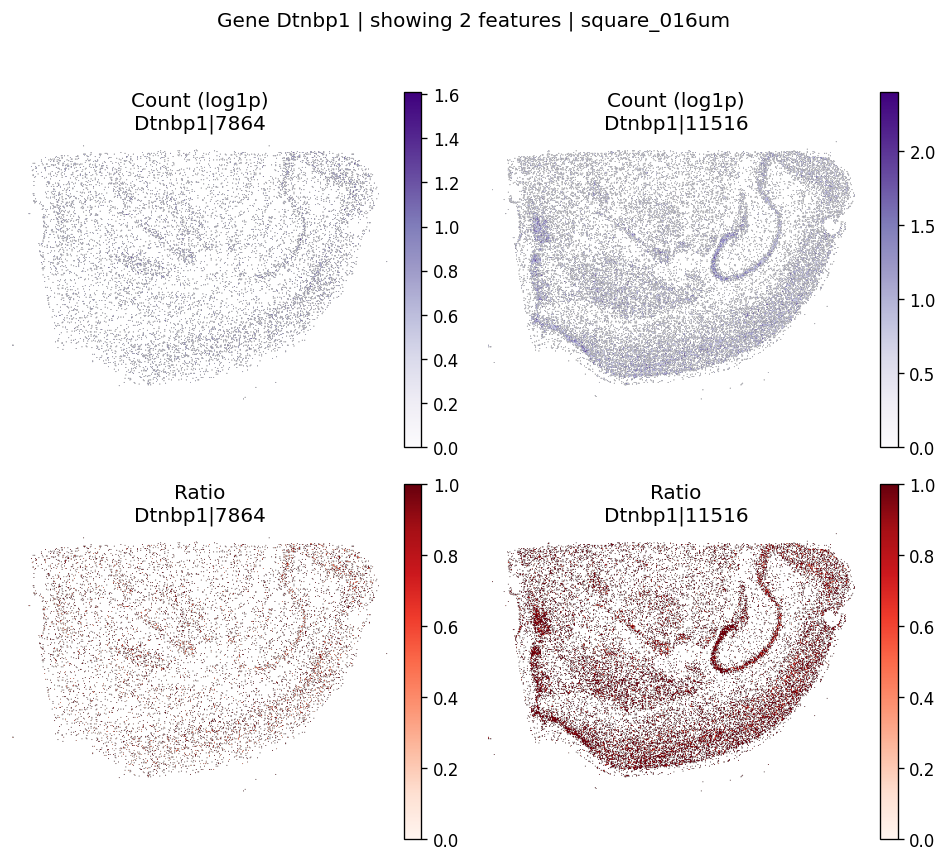

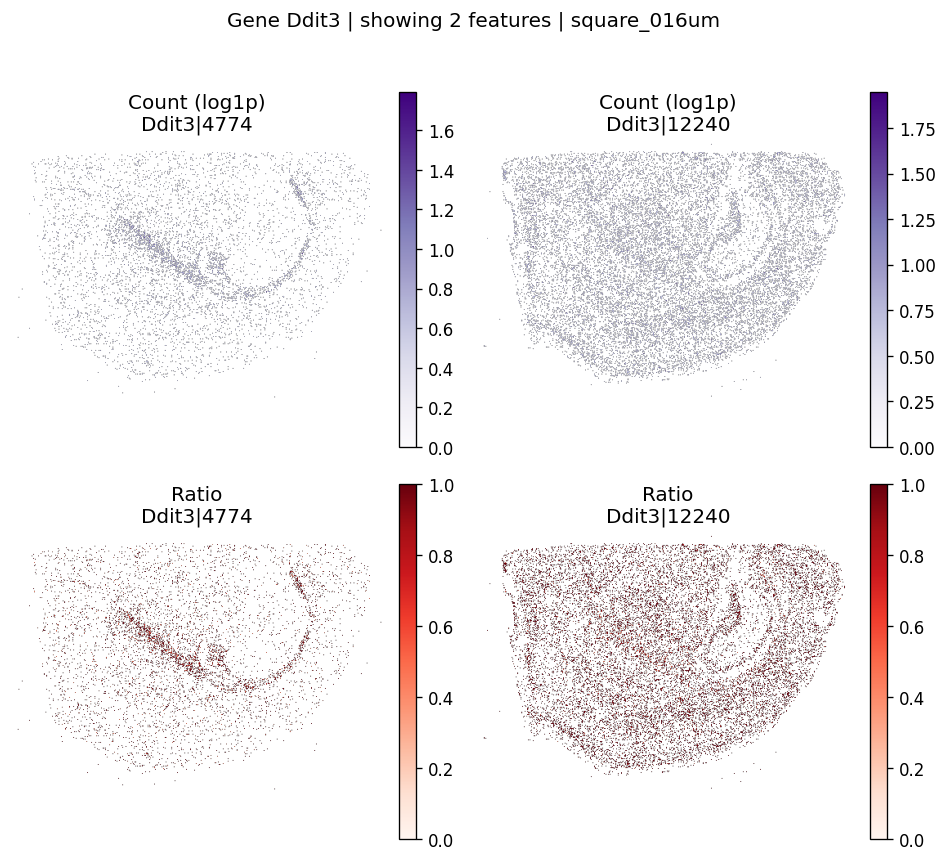

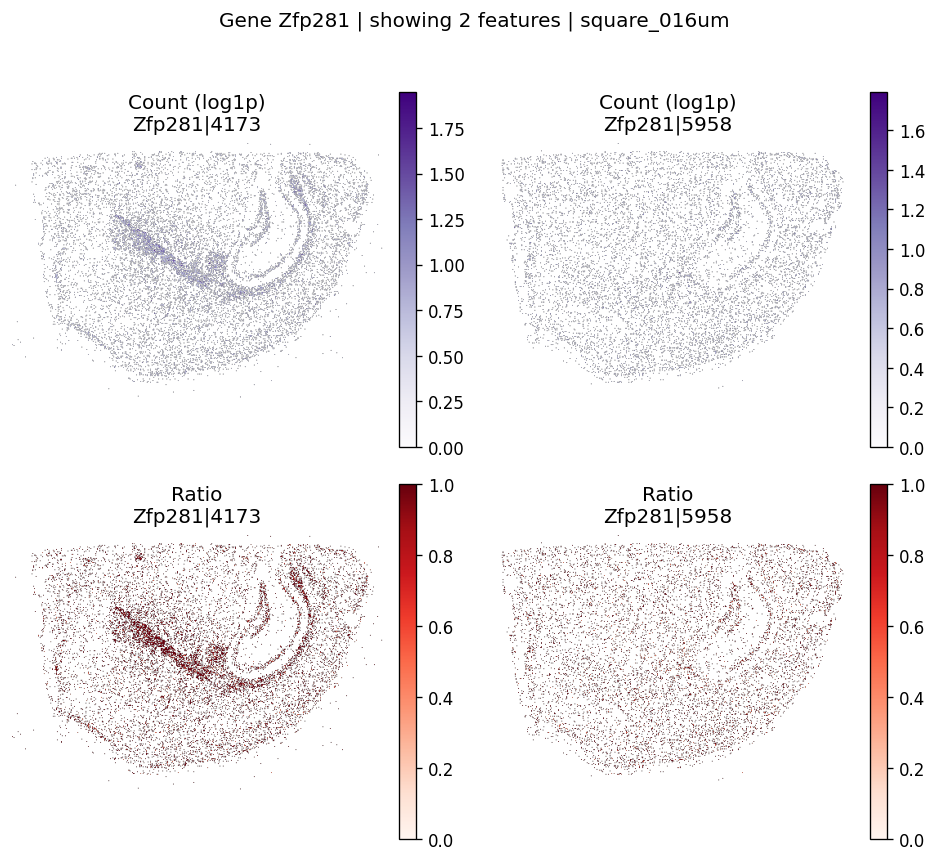

Visualize selected significant genes

def ensure_rasterized(sdata, bin_table: str, bin_element: str, layer: str = 'counts'):
    raster_key = f'rasterized_{bin_table}_{layer}'
    if raster_key in sdata.images:
        return raster_key

    adata = sdata.tables[bin_table]
    adata.X = adata.layers[layer]
    if hasattr(adata.X, 'tocsc') and getattr(adata.X, 'format', None) != 'csc':
        adata.X = adata.X.tocsc()

    sdata[raster_key] = rasterize_bins(
        sdata,
        bins=bin_element,
        table_name=bin_table,
        col_key='array_col',
        row_key='array_row',
    )
    return raster_key

def plot_gene_codeword_maps(
    sdata,
    bin_table: str,
    bin_element: str,
    gene_id: str,
    var_meta: pd.DataFrame | None = None,
    group_col: str = 'gene_symbol',
    max_features: int = 4,
    hide_zero_count: bool = True,
    hide_zero_ratio: bool = True,
):
    adata = sdata.tables[bin_table]
    if var_meta is None:
        var_meta = adata.var.copy()

    if group_col not in var_meta.columns:
        raise ValueError(f"'{group_col}' not found in var metadata columns")

    feature_names = var_meta.index[var_meta[group_col].astype(str) == str(gene_id)].tolist()
    if len(feature_names) == 0:
        raise ValueError(f"No features found for gene '{gene_id}'")

    feature_names = feature_names[: min(len(feature_names), max_features)]

    raster_key = ensure_rasterized(sdata, bin_table=bin_table, bin_element=bin_element)
    data = sdata[raster_key].sel(c=feature_names).values
    counts_cube = np.moveaxis(np.asarray(data, dtype=float), 0, -1)

    counts_flat = counts_cube.reshape(-1, counts_cube.shape[-1])
    ratios_flat = counts_to_ratios(counts_flat, transformation='none', nan_filling='none')
    ratios_cube = ratios_flat.numpy().reshape(counts_cube.shape)

    n_feat = counts_cube.shape[-1]
    fig, axes = plt.subplots(2, n_feat, figsize=(4 * n_feat, 7), squeeze=False)

    vmax_ratio = np.nanpercentile(ratios_cube, 99) if np.isfinite(ratios_cube).any() else 1.0

    for i, feature in enumerate(feature_names):
        c = counts_cube[:, :, i]
        r = ratios_cube[:, :, i]

        if hide_zero_count:
            c = np.where(c == 0, np.nan, c)
        if hide_zero_ratio:
            r = np.where(r == 0, np.nan, r)

        im0 = axes[0, i].imshow(np.log1p(c), cmap='Purples', vmin=0.0)
        axes[0, i].set_title(f'Count (log1p)\n{feature}')
        axes[0, i].axis('off')
        fig.colorbar(im0, ax=axes[0, i], fraction=0.046, pad=0.04)

        im1 = axes[1, i].imshow(r, cmap='Reds', vmin=0.0, vmax=vmax_ratio)
        axes[1, i].set_title(f'Ratio\n{feature}')
        axes[1, i].axis('off')
        fig.colorbar(im1, ax=axes[1, i], fraction=0.046, pad=0.04)

    fig.suptitle(f'Gene {gene_id} | showing {n_feat} features | {bin_table}', y=1.02)
    fig.tight_layout()
    plt.show()

top_genes = sv_res_fft.head(10)['gene'].astype(str).tolist()
top_genes[:5]

['Zfp281', 'Ddit3', 'Ttll6', 'Grpel1', 'Ifit3']

for gene_id in top_genes[:2]:
    plot_gene_codeword_maps(
        sdata=sdata,
        bin_table=test_table,
        bin_element=test_bins_element,
        gene_id=gene_id,
        var_meta=sdata.tables[test_table].var,
        group_col=group_iso_by,
        max_features=6,
        hide_zero_ratio=True,
    )

And also for negative control probes

top_ctrl_genes = sv_res_fft.loc[ctrl_genes].head(10)['gene'].astype(str).tolist()
top_ctrl_genes[:5]

['Intergenic_Region_105_part_73',
 'NegControlProbe_00041',
 'NegControlProbe_00003',
 'Intergenic_Region_10757_part_30',
 'NegControlProbe_00014']

for gene_id in top_ctrl_genes[:2]:
    plot_gene_codeword_maps(
        sdata=sdata,
        bin_table=test_table,
        bin_element=test_bins_element,
        gene_id=gene_id,
        var_meta=sdata.tables[test_table].var,
        group_col=group_iso_by,
        max_features=6,
        hide_zero_ratio=True,
    )

%%time
# Example: inspect a specific gene manually
plot_gene_codeword_maps(
    sdata=sdata,
    bin_table=test_table,
    bin_element=test_bins_element,
    gene_id='Dtnbp1',
    var_meta=sdata.tables[test_table].var,
    group_col=group_iso_by,
    max_features=6,
    hide_zero_ratio=True,
)

CPU times: user 222 ms, sys: 23.5 ms, total: 246 ms
Wall time: 246 ms

To see the spatially variable transcript regions, we can visualize the 10x reference probe sets along with a matched transcript reference. The following files need to be downloaded and provided as input:

• xenium_mouse_5K_gene_expression_panel_probe_locations.bed from 10x Genomics

• gencode.vM23.annotation.gtf.gz from GENCODE

Show code cell source

Hide code cell source

def plot_codeword_transcript_structure(
    gene_name: str,
    bed_file: str | Path,
    gtf_file: str | Path,
    figsize: tuple[float, float] = (12, 6),
):
    """Visualize codeword probes and transcript exon structure for one gene."""
    import gzip

    bed_file = Path(bed_file)
    gtf_file = Path(gtf_file)

    # Parse BED12/bedDetail rows while skipping track/browser headers.
    bed_cols = [
        "chrom",
        "start",
        "end",
        "name",
        "score",
        "strand",
        "thickStart",
        "thickEnd",
        "itemRgb",
        "blockCount",
        "blockSizes",
        "blockStarts",
        "detail",
    ]
    bed_records: list[list[str]] = []
    with open(bed_file, "rt", encoding="utf-8") as handle:
        for line in handle:
            line = line.rstrip("\n")
            if not line or line.startswith("#") or line.startswith("track") or line.startswith("browser"):
                continue
            parts = line.split("\t")
            if len(parts) < 12:
                continue
            detail = parts[12] if len(parts) >= 13 else ""
            bed_records.append(parts[:12] + [detail])

    if not bed_records:
        warnings.warn(f"No valid BED12 rows found in {bed_file}")
        return

    bed_df = pd.DataFrame(bed_records, columns=bed_cols)
    numeric_cols = ["start", "end", "thickStart", "thickEnd", "blockCount"]
    for col in numeric_cols:
        bed_df[col] = pd.to_numeric(bed_df[col], errors="coerce").fillna(0).astype(int)

    # Extract gene symbol, gene id, and codeword id from Xenium probe naming.
    def parse_probe_fields(row: pd.Series) -> pd.Series:
        name_text = str(row["name"])
        detail_text = str(row.get("detail", ""))

        parts = [p.strip() for p in name_text.split("|")]
        gene_token = parts[0] if parts else name_text
        codeword_id = parts[1] if len(parts) >= 2 else ""

        gene_symbol = gene_token.split(" (", 1)[0].strip()
        gene_id = ""
        if "(" in gene_token and ")" in gene_token:
            gene_id = gene_token.split("(", 1)[1].split(")", 1)[0].strip()

        if (not codeword_id) and ("Codeword:" in detail_text):
            codeword_id = detail_text.split("Codeword:", 1)[1].split(",", 1)[0].strip()

        if not codeword_id:
            codeword_id = "NA"

        return pd.Series(
            {
                "gene_symbol": gene_symbol,
                "gene_id": gene_id,
                "codeword_id": codeword_id,
            }
        )

    parsed = bed_df.apply(parse_probe_fields, axis=1)
    bed_df = pd.concat([bed_df, parsed], axis=1)

    # Match by gene symbol, Ensembl gene ID, or generic name contains fallback.
    gene_key = str(gene_name).strip().lower()
    probes = bed_df[
        (bed_df["gene_symbol"].str.lower() == gene_key)
        | (bed_df["gene_id"].str.lower() == gene_key)
        | (bed_df["name"].str.lower().str.contains(gene_key, na=False))
    ].copy()

    if probes.empty:
        warnings.warn(f"No probes found for gene '{gene_name}' in {bed_file}")

    # Convert BED12 blocks to absolute genomic coordinates per probe row.
    def parse_blocks(row: pd.Series) -> list[tuple[int, int]]:
        starts = [int(x) for x in str(row["blockStarts"]).strip(",").split(",") if x != ""]
        sizes = [int(x) for x in str(row["blockSizes"]).strip(",").split(",") if x != ""]
        n = min(int(row["blockCount"]), len(starts), len(sizes))

        if n == 0:
            return [(int(row["start"]), int(row["end"]))]

        blocks = []
        for i in range(n):
            block_start = int(row["start"]) + starts[i]
            block_end = block_start + sizes[i]
            blocks.append((block_start, block_end))
        return blocks

    if not probes.empty:
        probes["blocks"] = probes.apply(parse_blocks, axis=1)

    # Read GTF and filter transcripts by gene symbol or gene id.
    if str(gtf_file).endswith(".gz"):
        gtf_opener = lambda f: gzip.open(f, "rt")
    else:
        gtf_opener = open

    transcripts_by_id = {}
    with gtf_opener(gtf_file) as f:
        for line in f:
            if line.startswith("#"):
                continue
            fields = line.rstrip("\n").split("\t")
            if len(fields) < 9:
                continue
            ftype, start, end = fields[2], int(fields[3]), int(fields[4])
            attrs = {}
            for attr in fields[8].split("; "):
                if " " in attr:
                    k, v = attr.split(" ", 1)
                    attrs[k] = v.strip('"')

            if attrs.get("gene_name", "").lower() != gene_key and attrs.get("gene_id", "").lower() != gene_key:
                continue

            tx_id = attrs.get("transcript_id", "unknown")
            if tx_id not in transcripts_by_id:
                tx_name = attrs.get("transcript_name", tx_id)
                transcripts_by_id[tx_id] = {
                    "chrom": fields[0],
                    "strand": fields[6],
                    "tx_name": tx_name,
                    "exons": [],
                }

            if ftype == "exon":
                transcripts_by_id[tx_id]["exons"].append((start, end))

    fig, ax = plt.subplots(figsize=figsize)

    # Plot transcripts first.
    y_pos = 0
    x_mins: list[int] = []
    x_maxs: list[int] = []

    strand_colors = {
        "+": "steelblue",
        "-": "darkorange",
    }

    if transcripts_by_id:
        for tx_id, tx_info in sorted(transcripts_by_id.items()):
            exons = sorted(tx_info["exons"])
            if not exons:
                continue

            min_coord = min(e[0] for e in exons)
            max_coord = max(e[1] for e in exons)
            x_mins.append(min_coord)
            x_maxs.append(max_coord)
            ax.plot([min_coord, max_coord], [y_pos, y_pos], "k-", linewidth=0.5, alpha=0.5)

            strand = str(tx_info.get("strand", "."))
            tx_color = strand_colors.get(strand, "gray")
            for exon_start, exon_end in exons:
                ax.barh(y_pos, exon_end - exon_start, left=exon_start, height=0.6, color=tx_color, edgecolor="black")

            # Label with transcript_name
            tx_name = tx_info.get("tx_name", tx_id[:20])
            ax.text(min_coord - (max_coord - min_coord) * 0.05, y_pos, tx_name[:30], ha="right", fontsize=8)
            y_pos += 1

    # Keep one row per probe record, but use only codeword IDs as labels.
    probe_rows_for_plot: list[tuple[str, list[tuple[int, int]]]] = []
    if not probes.empty:
        probe_rows = probes.sort_values(["codeword_id", "chrom", "start", "end"])
        for _, row in probe_rows.iterrows():
            blocks = row["blocks"] if isinstance(row["blocks"], list) and row["blocks"] else [(int(row["start"]), int(row["end"]))]
            codeword_id = str(row.get("codeword_id", "NA"))
            probe_rows_for_plot.append((codeword_id, blocks))

            x_mins.append(min(s for s, _ in blocks))
            x_maxs.append(max(e for _, e in blocks))

    x_pad = max(1.0, (max(x_maxs) - min(x_mins)) * 0.02) if x_mins and x_maxs else 1.0

    for idx, (codeword_id, blocks) in enumerate(probe_rows_for_plot):
        probe_y = y_pos + idx
        probe_min = min(b[0] for b in blocks)
        probe_max = max(b[1] for b in blocks)

        ax.plot([probe_min, probe_max], [probe_y, probe_y], color="firebrick", linewidth=0.7, alpha=0.6)
        for block_start, block_end in blocks:
            ax.barh(
                probe_y,
                block_end - block_start,
                left=block_start,
                height=0.45,
                color="salmon",
                edgecolor="firebrick",
            )

        # Show codeword id only.
        ax.text(probe_min - x_pad, probe_y, codeword_id, ha="right", va="center", fontsize=7, color="red")

    y_pos += len(probe_rows_for_plot)

    ax.set_ylim(-0.5, y_pos + 0.5)
    ax.set_xlabel("Genomic coordinate (bp)")
    ax.set_ylabel("")
    ax.set_yticks([])
    ax.set_title(f"Probe and transcript structure: {gene_name}")
    ax.grid(True, axis="x", alpha=0.3)

    direction_note = "Transcript 5'->3' direction: + strand left->right (blue) | - strand right->left (orange)"
    fig.text(0.5, 0.01, direction_note, ha="center", va="bottom", fontsize=10, color="black")

    fig.tight_layout(rect=(0.0, 0.05, 1.0, 1.0))
    plt.show()

%%time
plot_codeword_transcript_structure(
    gene_name="Dtnbp1",
    bed_file="/Users/jysumac/Projects/SPLISOSM_paper/data/xenium_5k_mouse_brain/xenium_mouse_5K_gene_expression_panel_probe_locations.bed",
    gtf_file="/Users/jysumac/reference/mm10/gencode.vM23.annotation.gtf.gz",
)

CPU times: user 10.4 s, sys: 55.7 ms, total: 10.4 s
Wall time: 10.5 s

Method comparison: SplisosmFFT vs SplisosmNP

For a direct method comparison, we run SplisosmNP on the same AnnData table used by SplisosmFFT.

%%time
model_np = SplisosmNP()
model_np.setup_data(
    adata=sdata.tables[test_table],
    spatial_key='spatial',
    layer='counts',
    approx_rank=20,
    group_iso_by=group_iso_by,
    gene_names=gene_name_col,
    min_counts=min_counts,
    min_bin_pct=min_bin_pct,
)
print(model_np)

=== Non-parametric SPLISOSM model for spatial isoform testings
- Number of genes: 4972
- Number of spots: 144372
- Number of covariates: 0
- Average number of isoforms per gene: 2.091713596138375
=== Test results
- Spatial variability test: NA
- Differential usage test: NA
CPU times: user 8min 6s, sys: 7.83 s, total: 8min 14s
Wall time: 6min 37s

%%time
model_np.test_spatial_variability(
    method='hsic-ir',
    ratio_transformation='none',
    print_progress=True,
)

100%|██████████| 4972/4972 [00:45<00:00, 108.19it/s]

CPU times: user 41.7 s, sys: 16.3 s, total: 58 s
Wall time: 46 s

sv_np = model_np.get_formatted_test_results('sv')[['gene', 'pvalue']].copy()
sv_np = sv_np.rename(columns={'pvalue': 'pvalue_np'})

comparison = sv_res_fft[['gene', 'pvalue']].copy()
comparison = comparison.rename(columns={'pvalue': 'pvalue_fft'})
comparison = comparison.merge(sv_np, on='gene', how='inner')

corr, _ = spearmanr(comparison['pvalue_fft'], comparison['pvalue_np'])

print(f'Genes tested in both methods: {len(comparison)}')
print(f'P-value correlation (Spearman rho): {corr:.4f}')

Genes tested in both methods: 4972
P-value correlation (Spearman rho): 0.7794

fig, ax = plt.subplots(figsize=(5, 5))
x = comparison['pvalue_fft'].to_numpy()
y = comparison['pvalue_np'].to_numpy()

ax.scatter(x + 1e-150, y + 1e-150, s=8, alpha=0.5)
ax.set_xscale('log')
ax.set_yscale('log')
ax.set_xlabel('P-value (SplisosmFFT)')
ax.set_ylabel('P-value (SplisosmNP)')
ax.set_title(f'FFT vs NP ({test_table}, Spearman rho={corr:.2f})')
ax.grid(True, alpha=0.3)

lims = [1e-150, 1.0]
ax.plot(lims, lims, 'r--', alpha=0.5, linewidth=1.5)
ax.set_xlim(lims)
ax.set_ylim(lims)

plt.tight_layout()
plt.show()

Summary

• load_xenium_codeword enables direct codeword-level multi-resolution binning from Xenium outputs.

• SplisosmFFT is an efficient default on regular square grids and yield highly similar results to SplisosmNP.

For reproducibility

import sys
from datetime import date
import splisosm

print('Last updated:', date.today())
print('Python:', sys.version.split()[0])
print('splisosm:', getattr(splisosm, '__version__', 'unknown'))

Last updated: 2026-03-17
Python: 3.12.12
splisosm: 1.0.4
