Visium HD FFPE (probe) Part II

Visium HD FFPE (probe) Part II#

This notebook is the second of two tutorials where we apply SPLISOSM to a probe-based Visium HD FFPE dataset of adult mouse brain. It covers the following steps:

  1. Run spatial variability (SV) tests to find genes with spatially variable probe usage, and RBP genes with spatially variable expression.

  2. For spatially variably processed (SVP) genes, run differential usage (DU) tests to check whether the probe usage co-varies with SV-RBP expression.

  3. Compare results of conditional and non-conditional differential usage tests, and between SplisosmFFT (rasterized) and SplisosmNP (vectorized) implementations.

Previous step: Visium HD FFPE (probe) Part I for data loading and SV test details.

The workflow is compatible with other ST platforms. See guidance on data preparation and the tutorial gallery for more examples.

Estimated runtime: ~10 min.

Preliminary notes#

Our differential association tests assume the association (e.g., potential regulation from RBP) occurs within bins. It is not for testing cross-bin associations (sometimes refer to as spatial cross-correlation), e.g., whether the expression of an RBP in one subcellular bin is associated with the probe usage of a gene in neighboring subcellular compartments. For this reason, we recommend running the analysis at 16um resolution or higher.

Imports#

from __future__ import annotations

from pathlib import Path
import warnings

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from scipy.stats import spearmanr
import scipy.sparse as sp

import spatialdata as sd
from spatialdata import rasterize_bins
from spatialdata.models import TableModel
from anndata import AnnData

from splisosm import SplisosmFFT, SplisosmNP
from splisosm.io import load_visiumhd_probe
from splisosm.utils import counts_to_ratios

warnings.filterwarnings("ignore", category=FutureWarning)
plt.rcParams["figure.dpi"] = 120
plt.rcParams["figure.figsize"] = (6, 4)

Configure paths and parameters#

Here, we focus on a list of potential RNA processing regulators, which are RBP genes with either CLIP data from POSTAR3 or binding motifs from CISBP-RNA. Feel free to modify the RBP gene list and create your own covariate table as needed.

# # RBP reference files
# rbp_motif_file = Path("path/to/cisbp-rna/mouse_pm/rbp_with_known_motif.txt")
# rbp_clip_file  = Path("path/to/POSTAR3/mouse.rbp_with_clip.txt")
# rbp_motif_genes = set(pd.read_csv(rbp_motif_file, header=None).iloc[:, 0].str.strip())
# rbp_clip_genes  = set(pd.read_csv(rbp_clip_file,  header=None).iloc[:, 0].str.strip())
# rbp_genes       = rbp_motif_genes | rbp_clip_genes
# print(f"CisBP-RNA (motif): {len(rbp_motif_genes)}  |  POSTAR3 (CLIP): {len(rbp_clip_genes)}")

rbp_genes = {
    'A1cf', 'Ago2', 'Ankhd1', 'Ankrd17', 'Apc', 'B020018G12Rik', 'Cbp', 'Celf',
    'Celf1', 'Celf2', 'Celf3', 'Celf4', 'Celf6', 'Cirbp', 'Cnot4', 'Cpeb2',
    'Cpeb3', 'Cpeb4', 'Cpsf6', 'Crebbp', 'Csda', 'Dazap1', 'ENSMUSG00000021927',
    'ENSMUSG00000049235', 'ENSMUSG00000056951', 'ENSMUSG00000089986',
    'ENSMUSG00000090049', 'Eif2s1', 'Eif4b', 'Elavl1', 'Elavl2', 'Elavl3',
    'Elavl4', 'Enox1', 'Enox2', 'Esrp1', 'Esrp2', 'Ezh2', 'Fam120a', 'Fmr1',
    'Fus', 'Fxr1', 'Fxr2', 'G3bp2', 'Gm10110', 'Gm12355', 'Gm5145', 'Gm7964',
    'Gm8991', 'Hnrnpa1', 'Hnrnpa2b1', 'Hnrnpa3', 'Hnrnpab', 'Hnrnpc', 'Hnrnpf',
    'Hnrnph1', 'Hnrnph2', 'Hnrnpk', 'Hnrnpl', 'Hnrnpr', 'Hnrpdl', 'Hnrpll',
    'Igf2bp1', 'Igf2bp2', 'Igf2bp3', 'Khdrbs1', 'Khdrbs2', 'Khdrbs3', 'Lin28a',
    'Lin28b', 'Matr3', 'Mbnl1', 'Mbnl2', 'Mbnl3', 'Mex3b', 'Mex3c', 'Mex3d',
    'Msi1', 'Msi2', 'Ncl', 'Nono', 'Nova1', 'Nova2', 'Pabpc1', 'Pabpc1l',
    'Pabpc2', 'Pabpc4', 'Pabpc5', 'Pabpc6', 'Pabpn1', 'Pcbp1', 'Pcbp2', 'Pcbp3',
    'Pcbp4', 'Pou5f1', 'Pprc1', 'Pspc1', 'Ptbp1', 'Ptbp2', 'Pum1', 'Pum2', 'Qk',
    'Raly', 'Ralyl', 'Rbfox1', 'Rbfox2', 'Rbfox3', 'Rbm10', 'Rbm24', 'Rbm28',
    'Rbm3', 'Rbm38', 'Rbm41', 'Rbm42', 'Rbm45', 'Rbm46', 'Rbm47', 'Rbm4b',
    'Rbm5', 'Rbm8a', 'Rbms1', 'Rbms2', 'Rbms3', 'Rbmx', 'Rbmxl2', 'Rbmxrt',
    'Rod1', 'Samd4', 'Samd4b', 'Sart3', 'Sf3b4', 'Sfpq', 'Snrnp70', 'Snrpa',
    'Snrpb2', 'Srrm4', 'Srsf1', 'Srsf10', 'Srsf12', 'Srsf2', 'Srsf3', 'Srsf4',
    'Srsf5', 'Srsf6', 'Srsf7', 'Srsf9', 'Syncrip', 'Taf15', 'Tardbp', 'Tia1',
    'Tial1', 'Ttp', 'Tut1', 'U2af2', 'Upf1', 'Ybx1', 'Ybx2', 'Ythdc1', 'Ythdc2',
    'Yy1', 'Zc3h10', 'Zcrb1', 'Zfp36', 'Zfp36l1', 'Zfp36l2', 'Zfp36l3'
}

print(f"Union: {len(rbp_genes)} RBP genes")

Union: 166 RBP genes

# Required: Space Ranger `outs` directory for Visium HD
visium_hd_outs = Path("/path/to/visium_hd_ffpe/outs")
sdata_zarr     = visium_hd_outs / "sdata_probe.filtered.zarr"

# Dataset / table identifiers — 16 µm throughout
dataset_id        = "Visium_HD_Mouse_Brain"
test_table        = "square_016um"
test_bins_element = f"{dataset_id}_square_016um"

# Probe annotation columns
group_iso_by           = "gene_ids"
candidate_gene_name_cols = ["gene_name", "gene_symbol", "gene_names"]

# Probe QC filters
min_counts  = 10
min_bin_pct = 0.01

Load SpatialData#

%%time
# Load preprocessed SpatialData object with probe-level quantification
sdata = sd.read_zarr(sdata_zarr)

# Check the presence of the test table and the required columns
adata_probe = sdata.tables[test_table]
if group_iso_by not in adata_probe.var.columns:
    raise ValueError(f"{group_iso_by!r} not found in {test_table}.var")

gene_name_col = next(
    (c for c in candidate_gene_name_cols if c in adata_probe.var.columns), None
)
if gene_name_col is None:
    raise ValueError(f"None of {candidate_gene_name_cols} found in adata_probe.var")

print(f"table={test_table}  bins={test_bins_element}")
print(f"group_iso_by={group_iso_by!r}  gene_name_col={gene_name_col!r}")
print(f"Probes: {adata_probe.n_vars}   Spots: {adata_probe.n_obs}")

table=square_016um  bins=Visium_HD_Mouse_Brain_square_016um
group_iso_by='gene_ids'  gene_name_col='gene_name'
Probes: 55538   Spots: 98917
CPU times: user 7.89 s, sys: 1.82 s, total: 9.72 s
Wall time: 5.84 s

Spatial variability tests#

Find genes with spatially variable probe usage (same as Part I)#

We first test each multi-probe gene for spatially variable probe usage (within-gene ratios) using SplisosmFFT and method="hsic-ir"at 16 µm resolution.

%%time
model_sv = SplisosmFFT(neighbor_degree=1, rho=0.99)
model_sv.setup_data(
    sdata=sdata,
    bins=test_bins_element,
    table_name=test_table,
    col_key="array_col",
    row_key="array_row",
    layer="counts",
    group_iso_by=group_iso_by,
    gene_names=gene_name_col,
    min_counts=min_counts,
    min_bin_pct=min_bin_pct,
    filter_single_iso_genes=True,
)
model_sv.test_spatial_variability(
    method="hsic-ir",
    ratio_transformation="none",
    n_jobs=-1,
    print_progress=True,
)

SV [hsic-ir]: 100%|██████████| 6224/6224 [01:40<00:00, 62.18it/s]

CPU times: user 3min 6s, sys: 33.9 s, total: 3min 40s
Wall time: 1min 45s

# Define SV genes for DU targets based on FFT results (FDR < 0.01)
sv_res_fft = model_sv.get_formatted_test_results(
      "sv", with_gene_summary=True
).sort_values("pvalue_adj")
sv_probe_gene_list = sorted(set(sv_res_fft.loc[sv_res_fft["pvalue_adj"] < 0.01, "gene"].astype(str)))
print(f"SVP genes (FFT FDR<0.01): {len(sv_probe_gene_list)} / {len(sv_res_fft)} \n"
      f"Will use these {len(sv_probe_gene_list)} genes as downstream DU targets")

sv_res_fft.head(5)

SVP genes (FFT FDR<0.01): 192 / 6226
Will use these 192 genes as downstream DU targets
gene statistic pvalue pvalue_adj n_isos perplexity pct_bin_on count_avg count_std major_ratio_avg
3517 Map4 0.000005 0.000000e+00 0.000000e+00 6 5.579242 0.347968 0.494172 0.839410 0.268749
3964 Syt1 0.000003 0.000000e+00 0.000000e+00 3 2.628424 0.387153 0.758151 1.310308 0.584887
1805 Gabbr1 0.000003 2.528068e-257 5.244899e-254 6 5.344769 0.283450 0.401003 0.768475 0.262467
1463 Oxr1 0.000002 8.884746e-135 1.382467e-131 5 4.394658 0.203888 0.274887 0.630308 0.306204
2276 Rabgap1l 0.000003 6.476995e-81 8.062563e-78 6 5.325925 0.242779 0.335079 0.701223 0.279439

Find RBP genes with spatially variable expression#

We next test each RBP gene for spatially variable expression using SplisosmFFT and method="hsic-gc" at 16 µm resolution. Spatially variably expressed RBP genes will be used as covariates in the downstream conditional DU test.

First, build gene-level RBP table (sum probe counts to gene-level) and save to the same SpatialData object.

%%time
# Filter probes to RBP genes
probe_gene_arr = adata_probe.var[gene_name_col].values
present_rbp = sorted(g for g in rbp_genes if g in set(probe_gene_arr))
print(f"RBP genes in dataset: {len(present_rbp)} / {len(rbp_genes)}")

# Define probe → gene mapping for present RBP genes
rbp_probe_mask = adata_probe.var[gene_name_col].isin(present_rbp).values
probe_gene_sub = adata_probe.var.loc[rbp_probe_mask, gene_name_col].values
unique_rbp_genes = sorted(set(probe_gene_sub))
gene_to_idx = {g: i for i, g in enumerate(unique_rbp_genes)}
probe_to_gene = np.array([gene_to_idx[g] for g in probe_gene_sub])

n_rbp_probe = int(rbp_probe_mask.sum())
agg_mat = sp.csr_matrix(
    (np.ones(n_rbp_probe), (probe_to_gene, np.arange(n_rbp_probe))),
    shape=(len(unique_rbp_genes), n_rbp_probe),
)

# Sum probe counts → gene counts: (n_spots, n_rbp)
X_rbp_probes = adata_probe.layers["counts"].tocsr()[:, rbp_probe_mask]
X_rbp_genes = (X_rbp_probes @ agg_mat.T).tocsc()   # csc for rasterize_bins

# Build obs (copy spatial metadata from probe table)
var_df_rbp = pd.DataFrame({
    "gene_name": unique_rbp_genes,
    "gene_ids": unique_rbp_genes,  # dummy gene_ids
}, index=unique_rbp_genes)

adata_rbp = AnnData(
    X=X_rbp_genes,
    obs=adata_probe.obs.copy(),
    var=var_df_rbp,
    # copy over spatialdata_attrs for parsing region/instance keys
    uns=adata_probe.uns.copy(),
    obsm=adata_probe.obsm.copy(),
)
adata_rbp.layers["counts"] = X_rbp_genes
print(f"RBP gene table: {adata_rbp.n_obs} spots × {adata_rbp.n_vars} genes")

RBP genes in dataset: 143 / 166
RBP gene table: 98917 spots × 143 genes
CPU times: user 194 ms, sys: 4.94 ms, total: 199 ms
Wall time: 199 ms

# Add gene-level RBP table to SpatialData
sdata["square_016um_rbp_genes"] = TableModel.parse(adata_rbp)
sdata

SpatialData object, with associated Zarr store: /Users/jysumac/Projects/SPLISOSM_paper/data/visiumhd_ffpe_mouse_cbs/sdata_probe.filtered.zarr
├── Images
│     ├── 'Visium_HD_Mouse_Brain_full_image': DataTree[cyx] (3, 23947, 18872), (3, 11973, 9436), (3, 5986, 4718), (3, 2993, 2359), (3, 1496, 1179)
│     ├── 'Visium_HD_Mouse_Brain_hires_image': DataArray[cyx] (3, 6000, 4729)
│     ├── 'Visium_HD_Mouse_Brain_lowres_image': DataArray[cyx] (3, 600, 473)
│     └── 'rasterized_square_016um_counts': DataArray[cyx] (55538, 396, 314)
├── Shapes
│     ├── 'Visium_HD_Mouse_Brain_cell_segmentations': GeoDataFrame shape: (40222, 2) (2D shapes)
│     ├── 'Visium_HD_Mouse_Brain_square_002um': GeoDataFrame shape: (6296688, 1) (2D shapes)
│     ├── 'Visium_HD_Mouse_Brain_square_008um': GeoDataFrame shape: (393543, 1) (2D shapes)
│     └── 'Visium_HD_Mouse_Brain_square_016um': GeoDataFrame shape: (98917, 1) (2D shapes)
└── Tables
      ├── 'cell_segmentations': AnnData (40222, 55538)
      ├── 'square_002um': AnnData (6296688, 55538)
      ├── 'square_008um': AnnData (393543, 55538)
      ├── 'square_016um': AnnData (98917, 55538)
      └── 'square_016um_rbp_genes': AnnData (98917, 143)
with coordinate systems:
    ▸ 'Visium_HD_Mouse_Brain', with elements:
        Visium_HD_Mouse_Brain_full_image (Images), Visium_HD_Mouse_Brain_hires_image (Images), Visium_HD_Mouse_Brain_lowres_image (Images), rasterized_square_016um_counts (Images), Visium_HD_Mouse_Brain_cell_segmentations (Shapes), Visium_HD_Mouse_Brain_square_002um (Shapes), Visium_HD_Mouse_Brain_square_008um (Shapes), Visium_HD_Mouse_Brain_square_016um (Shapes)
    ▸ 'Visium_HD_Mouse_Brain_downscaled_hires', with elements:
        Visium_HD_Mouse_Brain_hires_image (Images), rasterized_square_016um_counts (Images), Visium_HD_Mouse_Brain_cell_segmentations (Shapes), Visium_HD_Mouse_Brain_square_002um (Shapes), Visium_HD_Mouse_Brain_square_008um (Shapes), Visium_HD_Mouse_Brain_square_016um (Shapes)
    ▸ 'Visium_HD_Mouse_Brain_downscaled_lowres', with elements:
        Visium_HD_Mouse_Brain_lowres_image (Images), rasterized_square_016um_counts (Images), Visium_HD_Mouse_Brain_cell_segmentations (Shapes), Visium_HD_Mouse_Brain_square_002um (Shapes), Visium_HD_Mouse_Brain_square_008um (Shapes), Visium_HD_Mouse_Brain_square_016um (Shapes)
with the following elements not in the Zarr store:
    ▸ rasterized_square_016um_counts (Images)
    ▸ square_016um_rbp_genes (Tables)

Next, we run the SVE test (method="hsic-gc") for RBP gene expression. Here, filter_single_iso_genes=False keeps genes with only one feature, which is the case for all RBP genes since we have aggregated probe counts to the total count.

%%time
rbp_sv = SplisosmFFT()
rbp_sv.setup_data(
    sdata=sdata,
    bins=test_bins_element,
    table_name="square_016um_rbp_genes",
    col_key="array_col",
    row_key="array_row",
    layer="counts",
    group_iso_by=gene_name_col,
    gene_names=gene_name_col,
    min_counts=min_counts,
    min_bin_pct=min_bin_pct,
    filter_single_iso_genes=False,  # every gene has exactly one entry (no probe-level info)
)
rbp_sv.test_spatial_variability(
    method="hsic-gc",
    print_progress=True,
)

SV [hsic-gc]: 100%|██████████| 125/125 [00:00<00:00, 413.40it/s]

CPU times: user 929 ms, sys: 221 ms, total: 1.15 s
Wall time: 440 ms

%%time
sv_res_rbp = rbp_sv.get_formatted_test_results("sv").sort_values("pvalue_adj")
sv_rbp_names = sv_res_rbp.loc[sv_res_rbp["pvalue_adj"] < 0.01, "gene"].astype(str).tolist()
print(f"Spatially variable RBP genes (FDR < 0.01): {len(sv_rbp_names)} / {len(sv_res_rbp)}")
sv_res_rbp.tail(5)

Spatially variable RBP genes (FDR < 0.01): 125 / 125
CPU times: user 550 μs, sys: 21 μs, total: 571 μs
Wall time: 572 μs
gene statistic pvalue pvalue_adj
120 Zc3h10 3.426719e-07 2.387772e-121 2.466707e-121
86 Rbms2 4.263304e-07 3.304639e-112 3.385901e-112
82 Rbm4b 2.577039e-07 1.471319e-108 1.495243e-108
79 Rbm41 2.310365e-07 1.099206e-82 1.108071e-82
24 Ezh2 2.376248e-07 2.735964e-48 2.735964e-48

Differential probe usage vs RBP expression#

In this section, we will test whether the usage of different probes for each spatially variably processed (SVP, FDR < 0.01) gene is associated with the expression of spatially variable RBP genes. A significant result may indicate the potential regulator of variable probe usage events. However, spatial autocorrelation is a major confounder that can lead to spurious associations. For example, RBP expression may correlate with some probe usage due to underlying hidden spatial structure such as cell-type distribution. To address this, we will compare two approaches:

  • Non-conditional test (method="hsic"): tests raw probe ratios vs raw RBP expression through the multivariate correlation coefficient.

  • Conditional test (method="hsic-gp"): tests usage association after removing confounding spatial structure using FFT-accelerated Gaussian process regression.

Prepare filtered probe table (SVP genes only)#

# Restrict probe table to SV-processed genes for the DU test
sv_probe_mask_var = adata_probe.var[gene_name_col].isin(sv_probe_gene_list)
adata_probe_svp = adata_probe[:, sv_probe_mask_var].copy()
print(f"Filtered probe table: {adata_probe_svp.n_obs} spots x {adata_probe_svp.n_vars} probes "
      f"({len(sv_probe_gene_list)} genes)")

sdata["square_016um_svp"] = TableModel.parse(adata_probe_svp)

Filtered probe table: 98917 spots x 649 probes (192 genes)

Register the covariate table#

To run the differential usage test, we pass a (n_spots, n_covariates) design matrix to SplisosmFFT.setup_data(). It can be one of the following:

  1. An AnnData table of the SpatialData object (i.e., the sdata.tables['square_016um_rbp_genes'] table we just registered). All features in table.var will be used as covariates.

  2. List of column names in the AnnData table (e.g., adata_probe_svp.obs.columns). If categorical, the column will be one-hot encoded.

  3. A user-provided DataFrame/array-like design matrix that shares the same spot index (e.g., adata_probe_svp.obs_names).

To register a custom covariate design matrix, make sure to:

  1. Create an AnnData object with the covariate matrix as .X and spot IDs as .obs_names.

  2. Add/copy necessary metadata such as .uns['spatialdata_attrs'], .obs and .obsm from the probe table to ensure the covariate table is properly aligned.

  3. Parse the AnnData object and link it to the SpatialData object. See the spatialdata documentation for more details on how to create and register tables in the sdata object.

# Since all RBP genes are spatially variably expressed, the following will
# duplicate the RBP covariate matrix as a new table in the SpatialData
adata_rbp_cov = adata_rbp[:, sv_rbp_names].copy()
adata_rbp_cov.X = adata_rbp_cov.layers["counts"].tocsc()

# adata_rbp_cov.uns["spatialdata_attrs"] is already copied from adata_rbp,
# so the following will work without additional metadata adjustments
sdata["square_016um_rbp_sve"] = TableModel.parse(adata_rbp_cov)

Run conditional differential usage test#

%%time
model_du_fft = SplisosmFFT(neighbor_degree=1, rho=0.99)
model_du_fft.setup_data(
    sdata=sdata,
    bins=test_bins_element, # the 16um bin for rasterization
    table_name="square_016um_svp", # probe counts from SVP genes
    design_mtx="square_016um_rbp_sve",    # gene counts from SVE RBPs
    col_key="array_col",
    row_key="array_row",
    layer="counts",
    group_iso_by=group_iso_by,
    gene_names=gene_name_col,
    min_counts=min_counts,
    min_bin_pct=min_bin_pct,
    filter_single_iso_genes=True, # same as the SVP test
)
print(model_du_fft)

=== SplisosmFFT
- Number of genes: 192
- Number of spots: 98917
- Number of spots after rasterization: 124344
- Number of covariates: 125
- Average isoforms per gene: 3.1
=== Model configurations
- Neighborhood degree: 1
- Spatial autocorrelation rho: 0.99
=== Test results
- Spatial variability: NA
- Differential usage: NA
CPU times: user 107 ms, sys: 10.7 ms, total: 117 ms
Wall time: 117 ms

%%time
# conditional DU test
model_du_fft.test_differential_usage(
    method='hsic-gp',
    residualize="cov_only",
    n_jobs=-1,
    print_progress=True,
)
du_fft = model_du_fft.get_formatted_test_results("du").sort_values("pvalue_adj")
n_sig_fft = int((du_fft["pvalue_adj"] < 0.01).sum())
print(f"Significant gene-RBP pairs (FDR < 0.01, multi-testing correction per RBP): {n_sig_fft} / {len(du_fft)}")
du_fft.head(10)

Covariates: 100%|██████████| 2/2 [00:09<00:00,  4.58s/it]

Significant gene-RBP pairs (FDR < 0.01, multi-testing correction per RBP): 2146 / 24000
CPU times: user 10.7 s, sys: 2.26 s, total: 13 s
Wall time: 9.22 s
gene covariate statistic pvalue pvalue_adj
18327 Tlk1 Celf2 0.000051 1.329160e-41 2.551986e-39
14015 Map4 Ptbp2 0.000061 1.416121e-34 2.718953e-32
18299 Tlk1 Snrnp70 0.000038 2.361746e-31 4.534552e-29
18317 Tlk1 Dazap1 0.000035 3.226290e-29 6.194477e-27
14011 Map4 Ralyl 0.000050 1.717097e-28 3.296827e-26
14009 Map4 Rbfox2 0.000049 6.617653e-28 1.270589e-25
14064 Map4 Elavl2 0.000048 2.711018e-27 5.205155e-25
18260 Tlk1 Rbfox1 0.000033 4.701848e-27 9.027549e-25
18294 Tlk1 Srsf3 0.000032 9.226192e-27 1.771429e-24
14062 Map4 Elavl4 0.000047 1.866261e-26 3.583221e-24

Visualize top RBP-gene pairs#

def ensure_rasterized(sdata, bin_table: str, bin_element: str, layer: str = "counts"):
    raster_key = f"rasterized_{bin_table}_{layer}"
    if raster_key in sdata.images:
        return raster_key

    adata = sdata.tables[bin_table]
    adata.X = adata.layers[layer]
    if hasattr(adata.X, "tocsc") and getattr(adata.X, "format", None) != "csc":
        adata.X = adata.X.tocsc()

    sdata[raster_key] = rasterize_bins(
        sdata,
        bins=bin_element,
        table_name=bin_table,
        col_key="array_col",
        row_key="array_row",
    )
    return raster_key

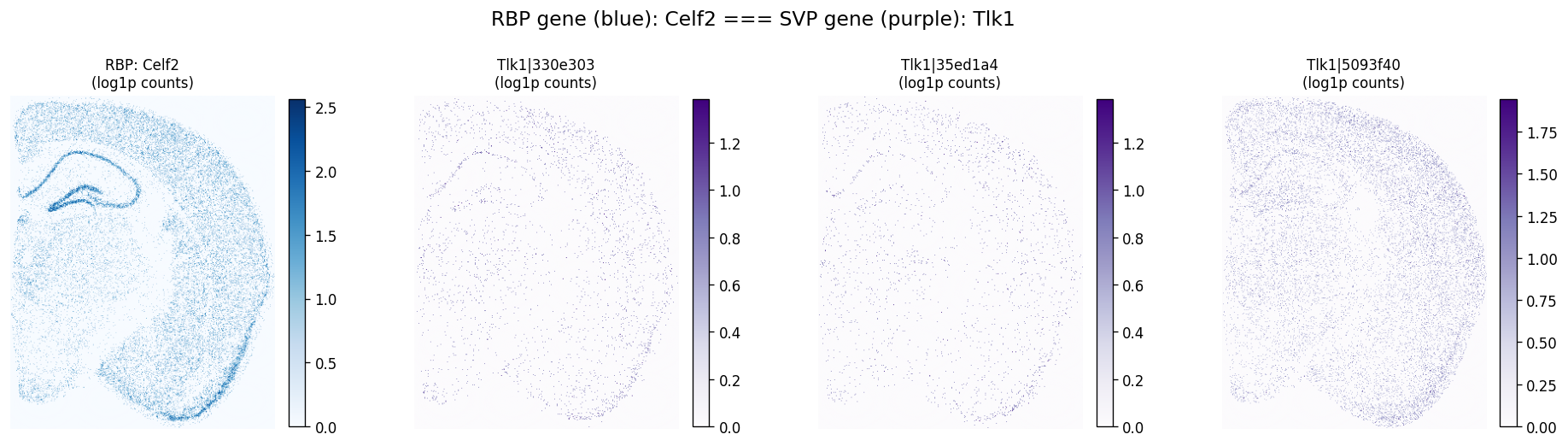

First take a look at the spatial expression of the top RBP-gene pair (Celf2-Tlk1) to see if their spatial patterns are visually correlated.

def plot_rbp_svp_pair(
    sdata,
    bin_element: str,
    rbp_table: str,
    rbp_gene: str,
    svp_table: str,
    svp_gene: str,
    svp_gene_col: str = "gene_ids",
    max_probes: int = 4,
):
    """Plot RBP spatial expression alongside SVP gene probe count maps in one row."""
    # ── load RBP expression raster ──────────────────────────────────────────
    rbp_raster_key = ensure_rasterized(sdata, rbp_table, bin_element)
    rbp_cube = np.asarray(
        sdata[rbp_raster_key].sel(c=[rbp_gene]).values[0], dtype=float
    ) # (ny, nx)

    # ── load SVP probe count raster ─────────────────────────────────────────
    adata_svp = sdata.tables[svp_table]
    probe_var = adata_svp.var.copy()
    probe_names = probe_var.index[
        probe_var[svp_gene_col].astype(str) == str(svp_gene)
    ].tolist()
    probe_names = [p for p in probe_names if p in adata_svp.var_names][:max_probes]

    if not probe_names:
        raise ValueError(f"No probes found for '{svp_gene}' in column '{svp_gene_col}'")

    svp_raster_key = ensure_rasterized(sdata, svp_table, bin_element)
    probe_cube = np.moveaxis(
        np.asarray(sdata[svp_raster_key].sel(c=probe_names).values, dtype=float), 0, -1
    ) # (ny, nx, n_probes)

    n_probes = probe_cube.shape[-1]
    n_cols = 1 + n_probes
    fig, axes = plt.subplots(1, n_cols, figsize=(4 * n_cols, 4.2), squeeze=False)

    # Panel 0: RBP expression
    rbp_map = np.log1p(rbp_cube)
    im0 = axes[0, 0].imshow(rbp_map, cmap="Blues")
    axes[0, 0].set_title(f"RBP: {rbp_gene}\n(log1p counts)", fontsize=10)
    axes[0, 0].axis("off")
    fig.colorbar(im0, ax=axes[0, 0], fraction=0.046, pad=0.04)

    # Panels 1…n_probes: SVP probe counts
    for i, probe in enumerate(probe_names):
        c = probe_cube[:, :, i]
        c_map = np.log1p(c)
        im = axes[0, i + 1].imshow(c_map, cmap="Purples")
        axes[0, i + 1].set_title(f"{probe}\n(log1p counts)", fontsize=10)
        axes[0, i + 1].axis("off")
        fig.colorbar(im, ax=axes[0, i + 1], fraction=0.046, pad=0.04)

    fig.suptitle(f"RBP gene (blue): {rbp_gene} === SVP gene (purple): {svp_gene}", fontsize=14, y=1.01)
    fig.tight_layout()
    plt.show()

plot_rbp_svp_pair(
    sdata=sdata,
    bin_element=test_bins_element,
    rbp_table='square_016um_rbp_sve',
    rbp_gene='Celf2',
    svp_table='square_016um_svp',
    svp_gene='Tlk1',
    svp_gene_col=gene_name_col,
    max_probes=4,
)
../_images/b1c8b6e4e980e00bcbaa43fa20383b345f4a1b65119c35bf8592df9071d62ce9.png

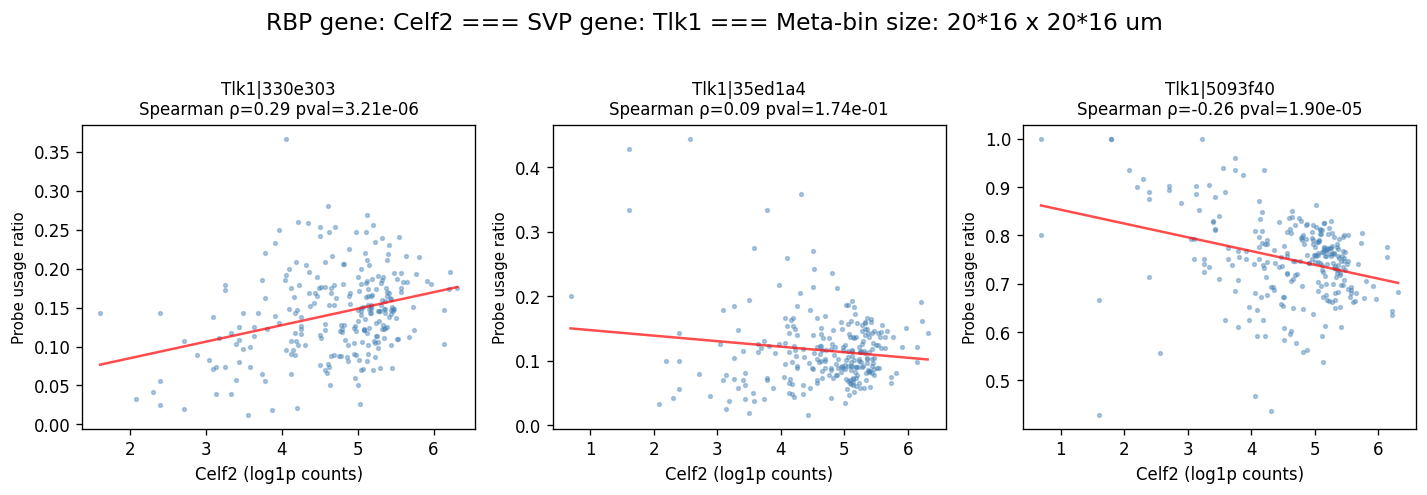

We can also plot probe usage ratios as a function of RBP expression. Since the raw 16um-bin data is very sparse and the counts and ratios are almost binary, we will aggregate adjacent bins into meta bins (meta_bin_size=4 gives 4*16 = 64um-by-64um meta bins) to get more robust estimates of probe usage ratios and RBP expression.

def plot_rbp_vs_probe_scatter(
    sdata,
    bin_element: str,
    rbp_table: str,
    rbp_gene: str,
    svp_table: str,
    svp_gene: str,
    svp_gene_col: str = "gene_ids",
    max_probes: int = 4,
    meta_bin_size: int = 4,
):
    """Scatter plot: RBP expression (x) vs per-probe usage ratio (y) using meta bins."""
    import torch as _torch
    import numpy as np
    from scipy.stats import spearmanr
    import matplotlib.pyplot as plt

    # ── load RBP expression ──────────────────────────────────────────────────
    rbp_raster_key = ensure_rasterized(sdata, rbp_table, bin_element)
    rbp_cube = np.asarray(
        sdata[rbp_raster_key].sel(c=[rbp_gene]).values[0],
        dtype=float
    ) # (ny, nx)

    # ── load SVP probe data ──────────────────────────────────────────────────
    adata_svp = sdata.tables[svp_table]
    probe_var = adata_svp.var.copy()
    probe_names = probe_var.index[
        probe_var[svp_gene_col].astype(str) == str(svp_gene)
    ].tolist()
    probe_names = [p for p in probe_names if p in adata_svp.var_names][:max_probes]

    if not probe_names:
        raise ValueError(f"No probes found for '{svp_gene}'")

    svp_raster_key = ensure_rasterized(sdata, svp_table, bin_element)
    probe_cube = np.moveaxis(
        np.asarray(sdata[svp_raster_key].sel(c=probe_names).values, dtype=float),
        0, -1
    ) # (ny, nx, n_probes)

    # ── Aggregate into meta bins ─────────────────────────────────────────────
    ny, nx = rbp_cube.shape
    k = meta_bin_size

    if k > 1:
        # Trim dimensions to be exactly divisible by meta_bin_size
        ny_trim = (ny // k) * k
        nx_trim = (nx // k) * k

        # Aggregate RBP counts
        rbp_trimmed = rbp_cube[:ny_trim, :nx_trim]
        rbp_agg = rbp_trimmed.reshape(ny_trim // k, k, nx_trim // k, k).sum(axis=(1, 3))
        rbp_flat = rbp_agg.ravel()

        # Aggregate SVP probe counts
        probe_trimmed = probe_cube[:ny_trim, :nx_trim, :]
        n_probes = probe_trimmed.shape[-1]
        probe_agg = probe_trimmed.reshape(ny_trim // k, k, nx_trim // k, k, n_probes).sum(axis=(1, 3))
        probe_flat = probe_agg.reshape(-1, n_probes)
    else:
        rbp_flat = rbp_cube.ravel()
        probe_flat = probe_cube.reshape(-1, probe_cube.shape[-1])

    # Compute within-gene usage ratios across all probes of this gene (on meta bins)
    all_count_flat = probe_flat # (n_meta_grid, n_probes)
    ratios_flat = counts_to_ratios(
        _torch.from_numpy(all_count_flat.astype(np.float32)),
        transformation="none",
        nan_filling="none",
    ).numpy() # (n_meta_grid, n_probes)

    n_probes = len(probe_names)
    fig, axes = plt.subplots(1, n_probes, figsize=(4 * n_probes, 4), squeeze=False)

    for i, probe in enumerate(probe_names):
        ratio_k = ratios_flat[:, i] # usage ratio for this probe
        count_k = probe_flat[:, i] # raw count

        # keep meta bins where RBP is expressed AND probe is detected
        valid = (
            np.isfinite(rbp_flat) &
            np.isfinite(ratio_k) &
            (rbp_flat > 0) &
            (count_k > 0)
        )

        x_v = np.log1p(rbp_flat[valid])
        y_v = ratio_k[valid]

        rho, pval = spearmanr(x_v, y_v) if valid.sum() > 10 else (np.nan, np.nan)
        rho_str = f"{rho:.2f}" if np.isfinite(rho) else "NA"
        p_str = f"{pval:.2e}" if np.isfinite(pval) else "NA"

        ax = axes[0, i]
        ax.scatter(x_v, y_v, s=5, alpha=0.4, rasterized=True, color="steelblue")

        # regression line
        if valid.sum() > 10:
            m, b = np.polyfit(x_v, y_v, 1)
            x_line = np.linspace(x_v.min(), x_v.max(), 100)
            ax.plot(x_line, m * x_line + b, "r-", linewidth=1.5, alpha=0.7)

        ax.set_xlabel(f"{rbp_gene} (log1p counts)", fontsize=10)
        ax.set_ylabel("Probe usage ratio", fontsize=9)
        ax.set_title(f"{probe}\nSpearman ρ={rho_str} pval={p_str}", fontsize=10)

    fig.suptitle(f"RBP gene: {rbp_gene} === SVP gene: {svp_gene} === Meta-bin size: {k}*16 x {k}*16 um", fontsize=14, y=1.02)
    fig.tight_layout()
    plt.show()

plot_rbp_vs_probe_scatter(
    sdata=sdata,
    bin_element=test_bins_element,
    rbp_table='square_016um_rbp_sve',
    rbp_gene='Celf2',
    svp_table='square_016um_svp',
    svp_gene='Tlk1',
    svp_gene_col=gene_name_col,
    max_probes=4,
    meta_bin_size=20,
)
../_images/da2f3fa5202967a6839eb29e9a57bab7b2e17c29d18d33c90b4833f43d0bbd91.png

Advanced analyses#

Effect of spatial conditioning and residualization strategy#

The default differential usage test checks the association between probe usage and RBP expression after removing spatial effects. To see how spatial conditioning affects the results, we can compare the results of the conditional test (method="hsic-gp") with a non-conditional test (method="hsic").

(a) Unconditional HSIC (multivariate correlation)#

%%time
# unconditional DU test
model_du_fft.test_differential_usage(
    method='hsic',
    n_jobs=-1,
    print_progress=True,
)
du_fft_hsic = model_du_fft.get_formatted_test_results("du")
du_fft_hsic = du_fft_hsic.rename(columns={
    "pvalue": "pvalue_fft_hsic",
    "statistic": "stat_fft_hsic"
})
print(f"Significant DU pairs (p<0.01, hsic): {(du_fft_hsic['pvalue_fft_hsic'] < 0.01).sum()} / {len(du_fft_hsic)}")

Covariates: 100%|██████████| 2/2 [00:06<00:00,  3.33s/it]

Significant DU pairs (p<0.01, hsic): 5236 / 24000
CPU times: user 8.35 s, sys: 2.4 s, total: 10.7 s
Wall time: 6.71 s

(b) Conditional HSIC-GP, residualize covariates only (default)#

%%time
# conditional DU test
model_du_fft.test_differential_usage(
    method='hsic-gp',
    residualize="cov_only",
    n_jobs=-1,
    print_progress=True,
)
du_fft_gp_cov = model_du_fft.get_formatted_test_results("du")
du_fft_gp_cov = du_fft_gp_cov.rename(columns={
    "pvalue": "pvalue_fft_gp_cov",
    "statistic": "stat_fft_gp_cov"
})
print("Significant DU pairs (p<0.01, hsic-gp, cov only): "
      f"{(du_fft_gp_cov['pvalue_fft_gp_cov'] < 0.01).sum()} / {len(du_fft_gp_cov)}")

Covariates: 100%|██████████| 2/2 [00:09<00:00,  4.85s/it]

Significant DU pairs (p<0.01, hsic-gp, cov only): 4100 / 24000
CPU times: user 11.1 s, sys: 2.97 s, total: 14 s
Wall time: 9.74 s

(c) Conditional HSIC-GP, residualize both covariates and probe usage ratios#

%%time
# conditional DU test
model_du_fft.test_differential_usage(
    method='hsic-gp',
    residualize="both", # the slowest
    n_jobs=-1,
    print_progress=True,
)
du_fft_gp_both = model_du_fft.get_formatted_test_results("du")
du_fft_gp_both = du_fft_gp_both.rename(columns={
    "pvalue": "pvalue_fft_gp_both",
    "statistic": "stat_fft_gp_both"
})
print("Significant DU pairs (p<0.01, hsic-gp, both): "
      f"{(du_fft_gp_both['pvalue_fft_gp_both'] < 0.01).sum()} / {len(du_fft_gp_both)}")

Covariates: 100%|██████████| 2/2 [00:18<00:00,  9.07s/it]

Significant DU pairs (p<0.01, hsic-gp, both): 3822 / 24000
CPU times: user 35.3 s, sys: 4.25 s, total: 39.5 s
Wall time: 18.2 s

(d) Compare conditional vs non-conditional test results#

def _neg_log10(p, floor=1e-300):
    return -np.log10(np.clip(p, floor, 1.0))

merge_cols = ["gene", "covariate"]

fft_all = (
    du_fft_hsic[merge_cols + ["pvalue_fft_hsic"]]
    .merge(du_fft_gp_cov[merge_cols + ["pvalue_fft_gp_cov"]], on=merge_cols, how="inner")
    .merge(du_fft_gp_both[merge_cols + ["pvalue_fft_gp_both"]], on=merge_cols, how="inner")
)
print(f"FFT gene-RBP pairs (inner join): {len(fft_all)}")

# Spearman correlations between FFT methods
rho_h_gc, _  = spearmanr(fft_all["pvalue_fft_hsic"],    fft_all["pvalue_fft_gp_cov"])
rho_h_gb, _  = spearmanr(fft_all["pvalue_fft_hsic"],    fft_all["pvalue_fft_gp_both"])
rho_gc_gb, _ = spearmanr(fft_all["pvalue_fft_gp_cov"],  fft_all["pvalue_fft_gp_both"])
print(f"Spearman ρ(hsic, hsic-gp cov_only) = {rho_h_gc:.3f}")
print(f"Spearman ρ(hsic, hsic-gp both)     = {rho_h_gb:.3f}")
print(f"Spearman ρ(hsic-gp cov, hsic-gp both) = {rho_gc_gb:.3f}")

FFT gene-RBP pairs (inner join): 24000
Spearman ρ(hsic, hsic-gp cov_only) = 0.939
Spearman ρ(hsic, hsic-gp both)     = 0.891
Spearman ρ(hsic-gp cov, hsic-gp both) = 0.986

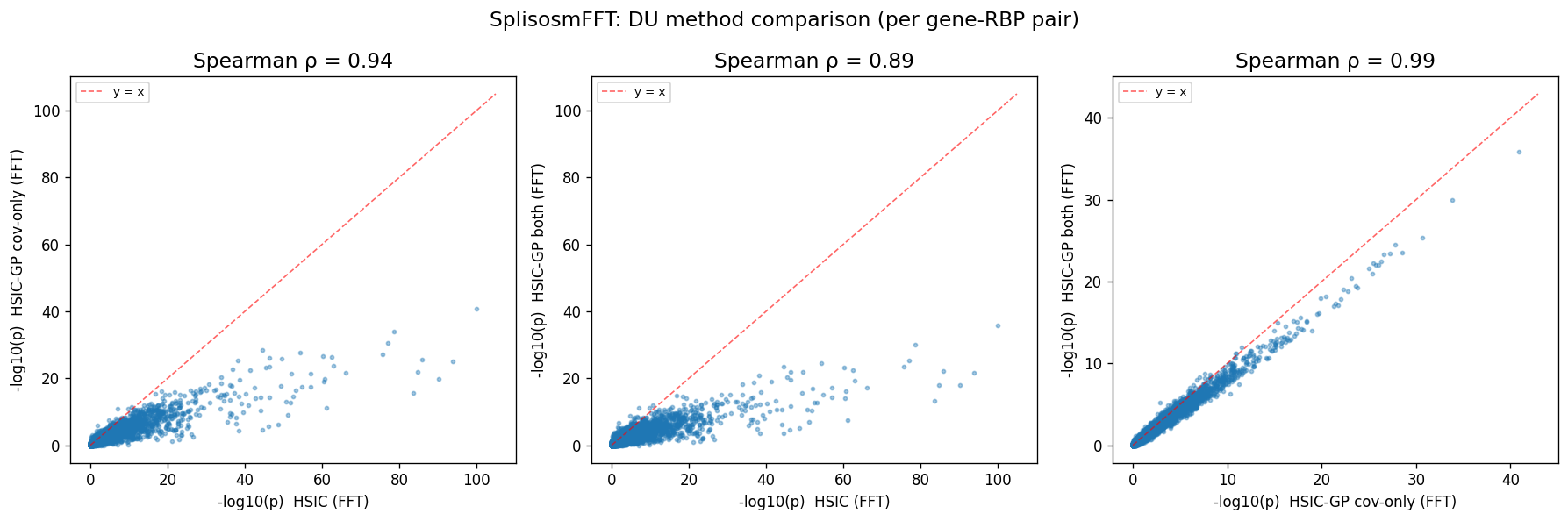

As expected, spatial conditioning mostly calibrates the p-values and reduces the number of significant hits, but the overall gene×factor pair rankings are highly correlated (Spearman’s rho = 0.89). Also, residualizing covariates only vs both covariates and probe usage ratios gives highly similar results (Spearman’s rho = 0.99), suggesting that the default approach is effective and robust.

pairs_fft = [
    ("pvalue_fft_hsic",    "pvalue_fft_gp_cov",
     "HSIC (FFT)",          "HSIC-GP cov-only (FFT)",  rho_h_gc),
    ("pvalue_fft_hsic",    "pvalue_fft_gp_both",
     "HSIC (FFT)",          "HSIC-GP both (FFT)",       rho_h_gb),
    ("pvalue_fft_gp_cov",  "pvalue_fft_gp_both",
     "HSIC-GP cov-only (FFT)", "HSIC-GP both (FFT)",   rho_gc_gb),
]

fig, axes = plt.subplots(1, 3, figsize=(15, 5))
for ax, (cx, cy, lx, ly, rho) in zip(axes, pairs_fft):
    x = _neg_log10(fft_all[cx].astype(float).values, floor=1e-100)
    y = _neg_log10(fft_all[cy].astype(float).values, floor=1e-100)
    ax.scatter(x, y, s=6, alpha=0.4, rasterized=True)
    lim = max(x.max(), y.max()) * 1.05
    ax.plot([0, lim], [0, lim], "r--", linewidth=1, alpha=0.6, label="y = x")
    ax.set_xlabel(f"-log10(p)  {lx}", fontsize=10)
    ax.set_ylabel(f"-log10(p)  {ly}", fontsize=10)
    ax.set_title(f"Spearman ρ = {rho:.2f}", fontsize=14)
    ax.legend(fontsize=8)

fig.suptitle("SplisosmFFT: DU method comparison (per gene-RBP pair)", fontsize=14)
fig.tight_layout()
plt.show()
../_images/1e4988f6260fb8d7f7eaeac9c1c9ace9fd88b36ca3c12f7b53e1a540359bf33a.png

Method comparison: SplisosmFFT vs SplisosmNP#

Finally, let’s check the agreement between the FFT-accelerated SplisosmFFT and the original vectorized SplisosmNP implementations of the conditional DU test.

%%time
model_du_np = SplisosmNP()
model_du_np.setup_data(
    adata=sdata.tables['square_016um_svp'],
    design_mtx=sdata.tables['square_016um_rbp_sve'].layers['counts'],
    covariate_names=sdata.tables['square_016um_rbp_sve'].var[gene_name_col].values,
    spatial_key="spatial",
    layer="counts",
    group_iso_by=group_iso_by,
    gene_names=gene_name_col,
    min_counts=min_counts,
    min_bin_pct=min_bin_pct,
    filter_single_iso_genes=True,
    skip_spatial_kernel=True,  # spatial kernel construction not required for DU test
)
model_du_np

CPU times: user 85.1 ms, sys: 26 ms, total: 111 ms
Wall time: 116 ms

=== SplisosmNP
- Number of genes: 192
- Number of spots: 98917
- Number of covariates: 125
- Average isoforms per gene: 3.1
=== Model configurations
- Spatial kernel source: identity (skip_spatial_kernel=True)
- k_neighbors: N/A, rho: 0.99
- Standardize spatial covariance: True
=== Test results
- Spatial variability: N/A
- Differential usage: N/A

Run unconditional HSIC test with SplisosmNP#

%%time
# Non-conditional: multivariate RV coefficient (no spatial residualization)
model_du_np.test_differential_usage(
    method="hsic",
    print_progress=True
)
du_np_hsic = model_du_np.get_formatted_test_results("du")
du_np_hsic = du_np_hsic.rename(columns={
    "pvalue": "pvalue_np_hsic",
    "statistic": "stat_np_hsic"
})
print(f"Significant DU (p<0.01, hsic): {(du_np_hsic['pvalue_np_hsic'] < 0.01).sum()}")

DU [hsic]: 100%|██████████| 192/192 [00:14<00:00, 12.86it/s]

Significant DU (p<0.01, hsic): 4042
CPU times: user 40.7 s, sys: 27.2 s, total: 1min 7s
Wall time: 16.4 s

Run conditional HSIC-GP test with SplisosmNP#

By default, SplisosmNP calls Sklearn’s GaussianProcessRegressor for spatial residualization. When the number of spots is large, full eigendecomposition becomes computationally infeasible. For illustration, we will pass n_inducing=1000 to the kernel regression model, meaning that a random subset of 1000 bins is used for hyperparameter optimization. See splisosm.kernel_gpr.FFTKernelGPR for details.

%%time
from sklearn.exceptions import ConvergenceWarning
# Conditional: spatially residualize both probe usage and RBP expression
with warnings.catch_warnings():
    warnings.filterwarnings("ignore", category=ConvergenceWarning, message=".*is close to the specified.*")
    model_du_np.test_differential_usage(
        method="hsic-gp",
        residualize="cov_only",
        # inducing point approximation for faster GP fitting
        gpr_configs={"covariate": {"n_inducing": 1000}},
        print_progress=True
    )
du_np_gp_cov = model_du_np.get_formatted_test_results("du")
du_np_gp_cov = du_np_gp_cov.rename(columns={
    "pvalue": "pvalue_np_gp_cov",
    "statistic": "stat_np_gp_cov"
})
print(f"Significant DU (p<0.01, hsic-gp cov only): {(du_np_gp_cov['pvalue_np_gp_cov'] < 0.01).sum()}")

Covariates: 100%|██████████| 125/125 [01:43<00:00,  1.21it/s]
DU [hsic-gp]: 100%|██████████| 192/192 [00:12<00:00, 15.59it/s]

Significant DU (p<0.01, hsic-gp cov only): 3823
CPU times: user 2min 14s, sys: 1min 1s, total: 3min 16s
Wall time: 1min 57s

Compare conditional vs non-conditional test results, and SplisosmFFT vs SplisosmNP#

def _neg_log10(p, floor=1e-300):
    return -np.log10(np.clip(p, floor, 1.0))

merge_cols = ["gene", "covariate"]

du_all = (
    du_fft_hsic[merge_cols + ["pvalue_fft_hsic"]]
    .merge(du_fft_gp_cov[merge_cols + ["pvalue_fft_gp_cov"]], on=merge_cols, how="inner")
    .merge(du_np_hsic[merge_cols + ["pvalue_np_hsic"]], on=merge_cols, how="inner")
    .merge(du_np_gp_cov[merge_cols + ["pvalue_np_gp_cov"]], on=merge_cols, how="inner")
)

# Spearman correlations between NP methods
rho_h_gc, _  = spearmanr(du_all["pvalue_np_hsic"],    du_all["pvalue_np_gp_cov"])
print(f"Spearman ρ(hsic, hsic-gp cov_only, SplisosmNP) = {rho_h_gc:.3f}")

# Spearman correlations between FFT and NP methods
rho_h, _  = spearmanr(du_all["pvalue_np_hsic"],    du_all["pvalue_fft_hsic"])
rho_gc, _ = spearmanr(du_all["pvalue_np_gp_cov"],  du_all["pvalue_fft_gp_cov"])
print(f"Spearman ρ(hsic, SplisosmNP vs SplisosmFFT) = {rho_h:.3f}")
print(f"Spearman ρ(hsic-gp cov_only, SplisosmNP vs SplisosmFFT) = {rho_gc:.3f}")

Spearman ρ(hsic, hsic-gp cov_only, SplisosmNP) = 0.979
Spearman ρ(hsic, SplisosmNP vs SplisosmFFT) = 1.000
Spearman ρ(hsic-gp cov_only, SplisosmNP vs SplisosmFFT) = 0.944

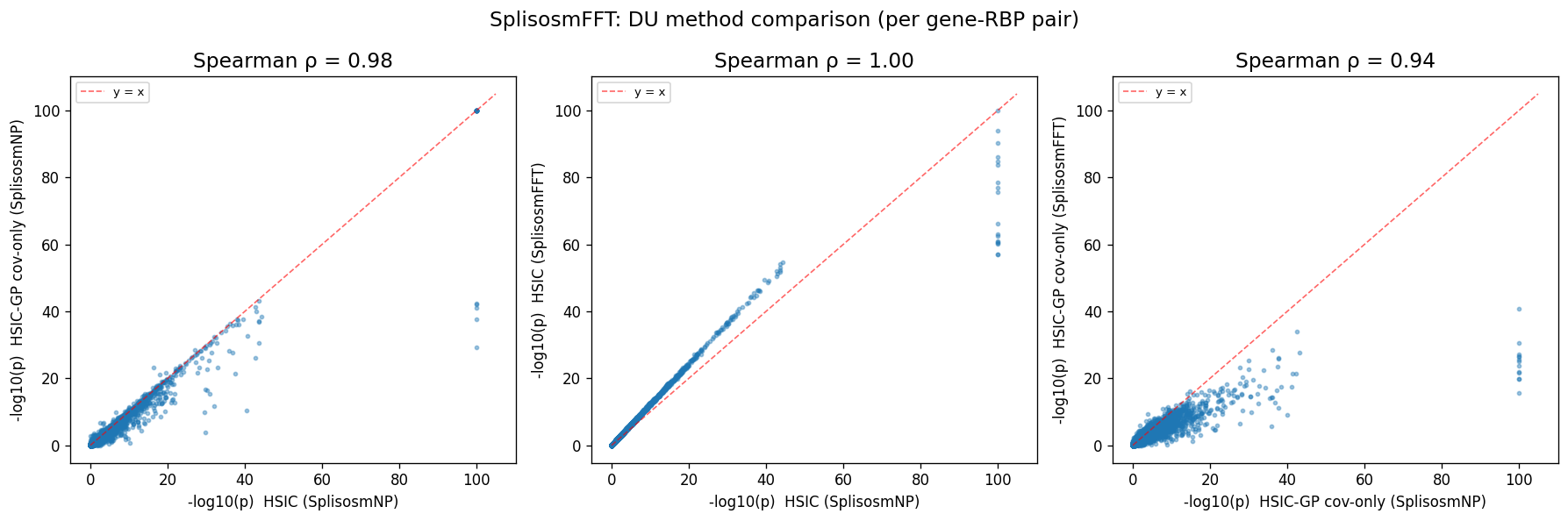

Due to rasterization (zero padding at unobserved bins), SplisosmFFT’s DU results will be slightly different from SplisosmNP’s, but the overall gene-factor pair rankings are still highly correlated.

pairs_du = [
    ("pvalue_np_hsic",    "pvalue_np_gp_cov",
     "HSIC (SplisosmNP)", "HSIC-GP cov-only (SplisosmNP)",  rho_h_gc),
    ("pvalue_np_hsic",    "pvalue_fft_hsic",
     "HSIC (SplisosmNP)", "HSIC (SplisosmFFT)",  rho_h),
    ("pvalue_np_gp_cov",  "pvalue_fft_gp_cov",
     "HSIC-GP cov-only (SplisosmNP)", "HSIC-GP cov-only (SplisosmFFT)",   rho_gc),
]

fig, axes = plt.subplots(1, 3, figsize=(15, 5))
for ax, (cx, cy, lx, ly, rho) in zip(axes, pairs_du):
    x = _neg_log10(du_all[cx].astype(float).values, floor=1e-100)
    y = _neg_log10(du_all[cy].astype(float).values, floor=1e-100)
    ax.scatter(x, y, s=6, alpha=0.4, rasterized=True)
    lim = max(x.max(), y.max()) * 1.05
    ax.plot([0, lim], [0, lim], "r--", linewidth=1, alpha=0.6, label="y = x")
    ax.set_xlabel(f"-log10(p)  {lx}", fontsize=10)
    ax.set_ylabel(f"-log10(p)  {ly}", fontsize=10)
    ax.set_title(f"Spearman ρ = {rho:.2f}", fontsize=14)
    ax.legend(fontsize=8)

fig.suptitle("SplisosmFFT: DU method comparison (per gene-RBP pair)", fontsize=14)
fig.tight_layout()
plt.show()
../_images/12143a45a4ab1c6f70ba4b018f8e2c6feaac3672ed1a6e9bf6e48f90134a96c2.png

For reproducibility#

import sys
from datetime import date
import splisosm

print("Last updated:", date.today())
print("Python:", sys.version.split()[0])
print("splisosm:", getattr(splisosm, "__version__", "unknown"))
print("spatialdata:", sd.__version__)

Last updated: 2026-04-08
Python: 3.12.13
splisosm: 1.1.0
spatialdata: 0.7.2
